Pro Range

Automatic Film Heat Shrinking

Name: Automatic Film Heat Shrinking
Brand: Lancing UK
SKU: automatic-carton-yoga-mat-roll-paper-beverage-bottle-pof-pvc-film-heat-shrinking-packaging-wrapping-machine-4

Enquire now Arrange a Demonstration Call Now

Ready to discuss Automatic Film Heat Shrinking? Tell us your product, pack size and output target and we will help you shortlist the right configuration.

Call 01494 623015 Get a quote Browse categories

Machine overview

Key information to help you specify the right configuration.

This heat shrinking machine is suitable for shrinking PE film, PVC film, POF film, etc. It can be used for packaging large products, such as carton, yoga mat, beverage bottles, etc. We also have other-size shrinking machine. Please contact us if you need. Attention This shrinking machine can work with sealing and cutting machine, realizing automated packaging. If you need, please feel free to contact us. Thank you!

Throughput

0-15m/min

Throughput depends on product, format and operator workflow.

Format range

Max 50kg

Configured to your bottle, closure and fill volume.

Utilities

380V 50-60Hz

Voltage, air and installation requirements confirmed for your site.

Speak to a specialist

Contact sales about this machine and we’ll advise on configuration, pricing guidance and lead times.

Enquire about this machine Call now: 01494 623015 Arrange a demonstration

At a glance

Power	18kW
Voltage	380V 50-60Hz
Machine Size	25009001650mm
Max	50kg
Machine Model	LU-BSP6040
Conveying Speed	0-15m/min

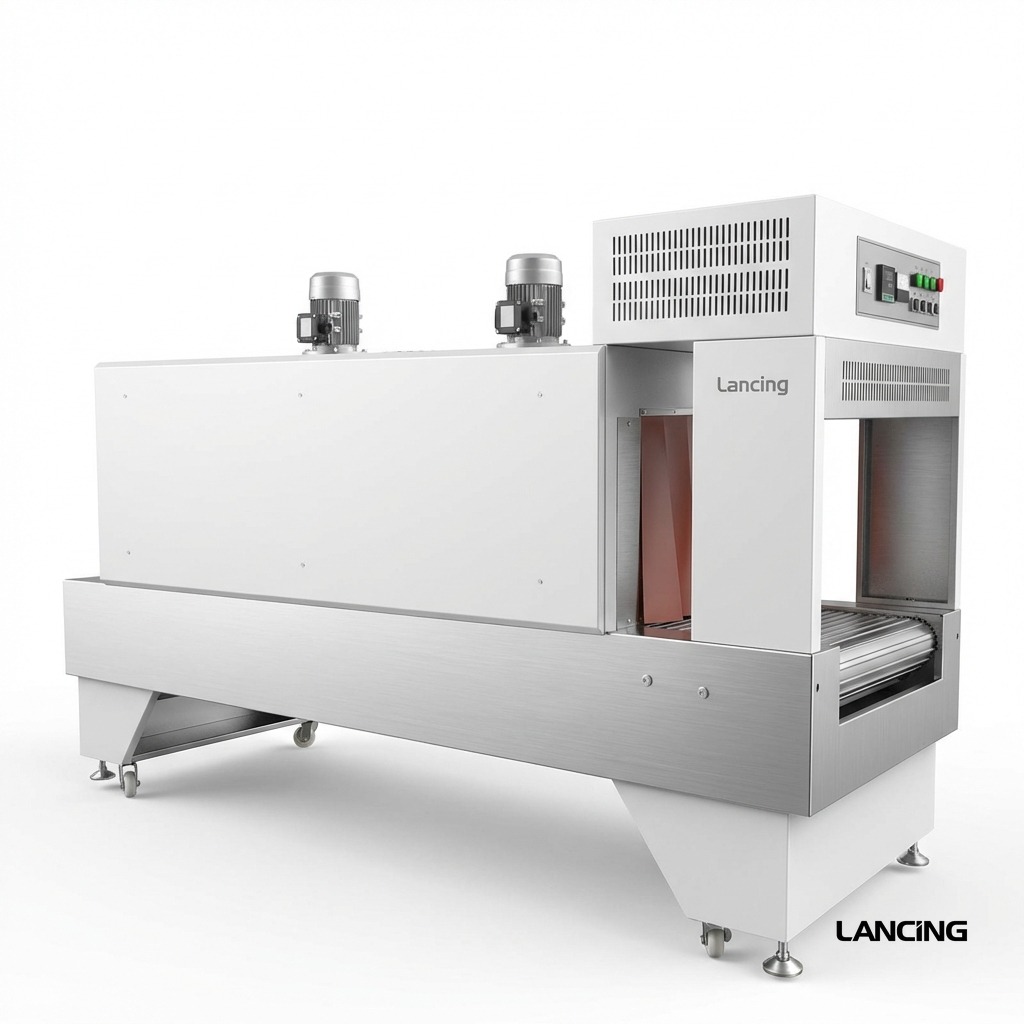

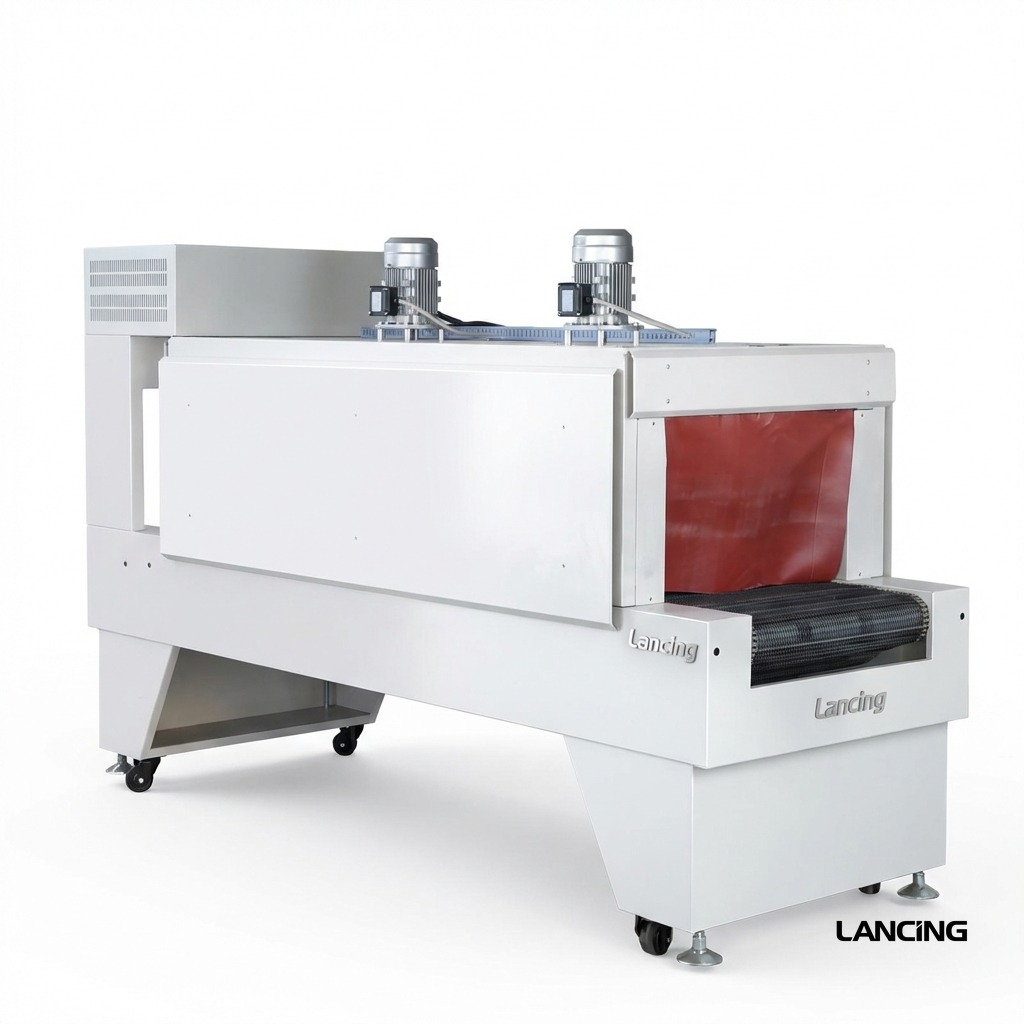

Machine gallery

Auto‑scrolling. Hover to pause.

Tip: Reorder images in the product manager — this carousel follows your order.

Specifications

Reference specification table. Final configuration may vary with options and scope.

Parameter	Value
Max	50kg
Machine Model	LU-BSP6040
Voltage	380V 50-60Hz
Power	18kW
Conveying Speed	0-15m/min
Furnace Size (LWH)	1800600400mm
Product Size (W*H)	500*350mm
Conveyor Type	Teflon conveyor, chain conveyor, net conveyor
Conveyor Loading Capacity	Max 50kg
Applicable Film Material	PE, POF, PVC, etc
Net Weight	420KG
Machine Size	25009001650mm

CAD / dimensions

CAD/dimensions are provided in a pop‑out viewer.

No CAD/dimensions drawing uploaded yet.

Site requirements

Voltage: 380V 50-60Hz
Power: 18kW
Footprint / size: 1800*600*400mm

For the most accurate proposal, include: product viscosity/foaming, container size, closure type, and required units per hour.

Quick answers

Clear answers for buyers, engineers and AI-driven search summaries.

What is Automatic Film Heat Shrinking used for?

This heat shrinking machine is suitable for shrinking PE film, PVC film, POF film, etc. It can be used for packaging large products, such as carton, yoga mat, beverage bottles, etc.

What output can Automatic Film Heat Shrinking achieve?

This page lists output at 0-15m/min. Actual throughput depends on the product, container, fill volume, changeover requirements and overall line setup.

What utilities or site requirements should I plan for?

Voltage: 380V 50-60Hz; Power: 18kW; Footprint / size: 1800*600*400mm

Can Lancing UK help match this machine to my product and container?

Yes. Lancing UK can review your product characteristics, bottle or pack format, closure type, required output and site constraints to confirm the right configuration before supply.
