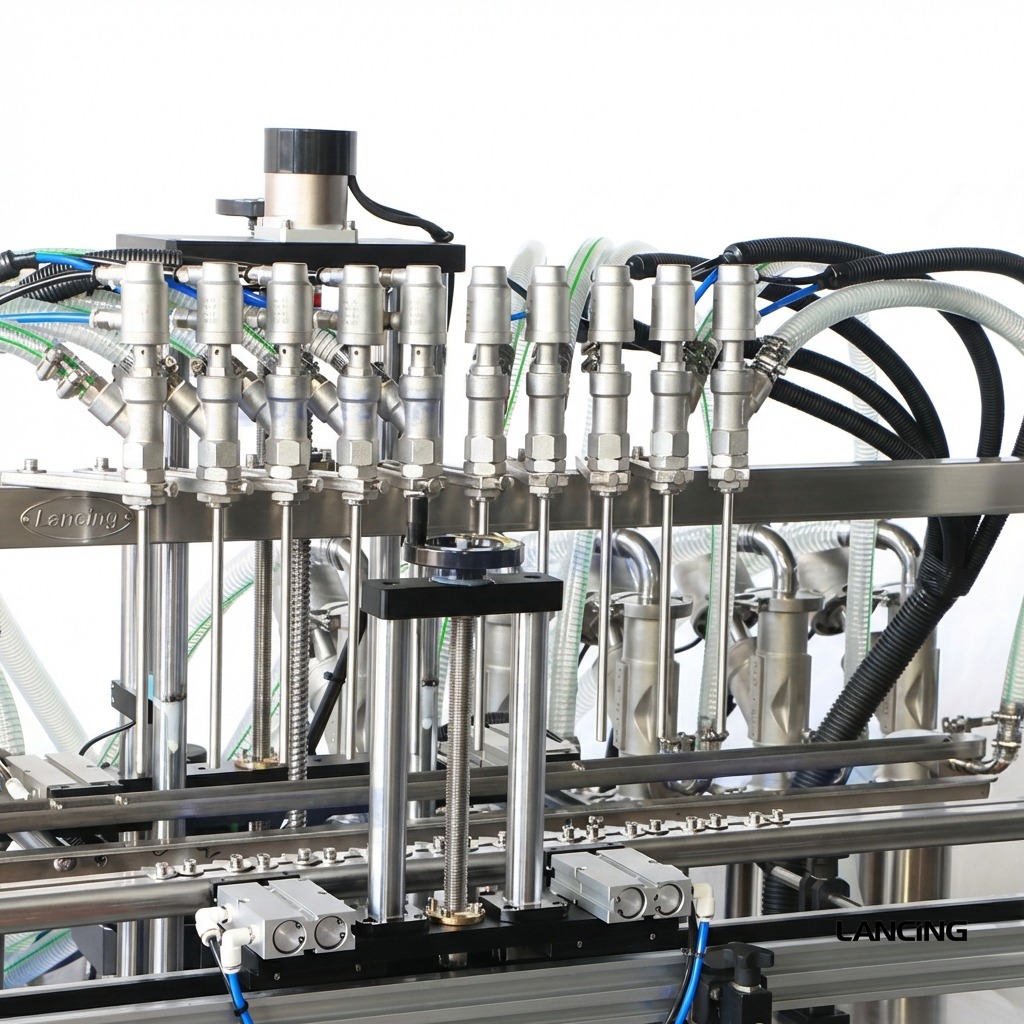

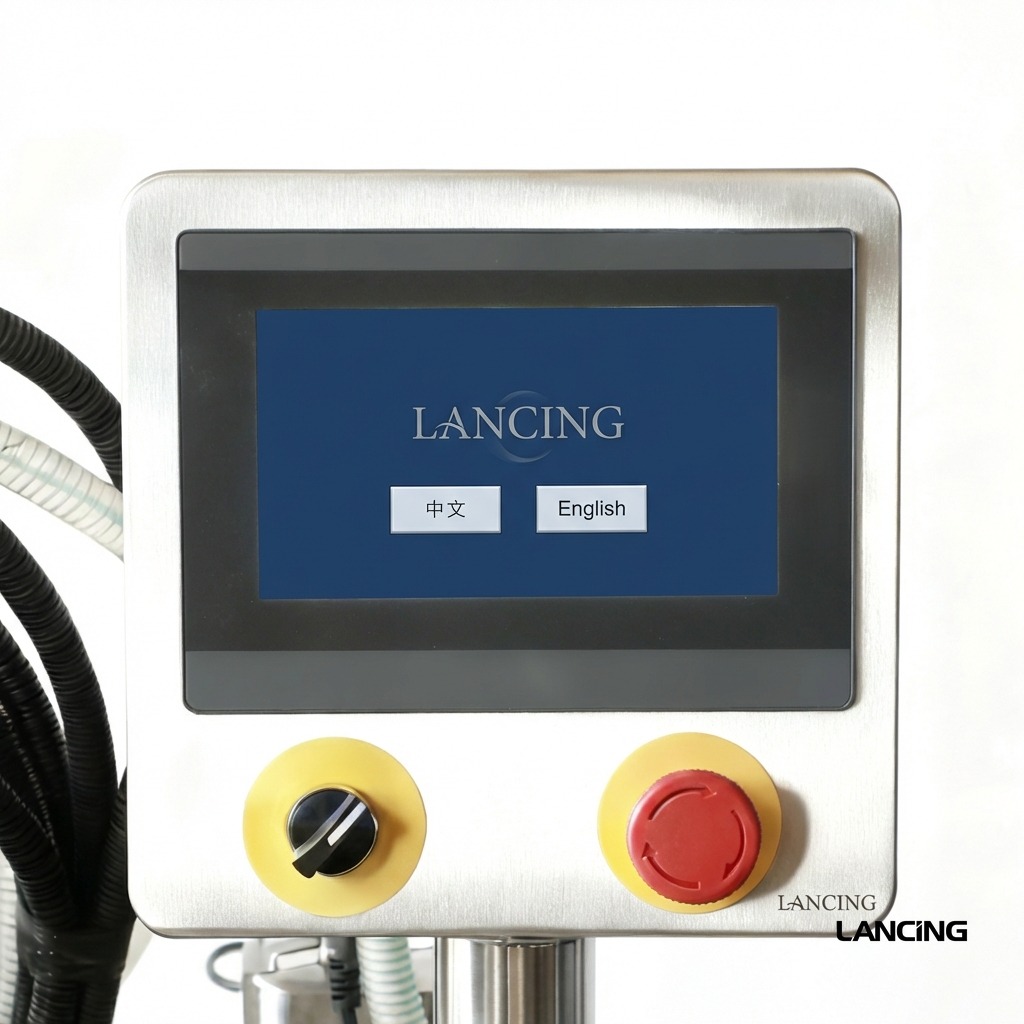

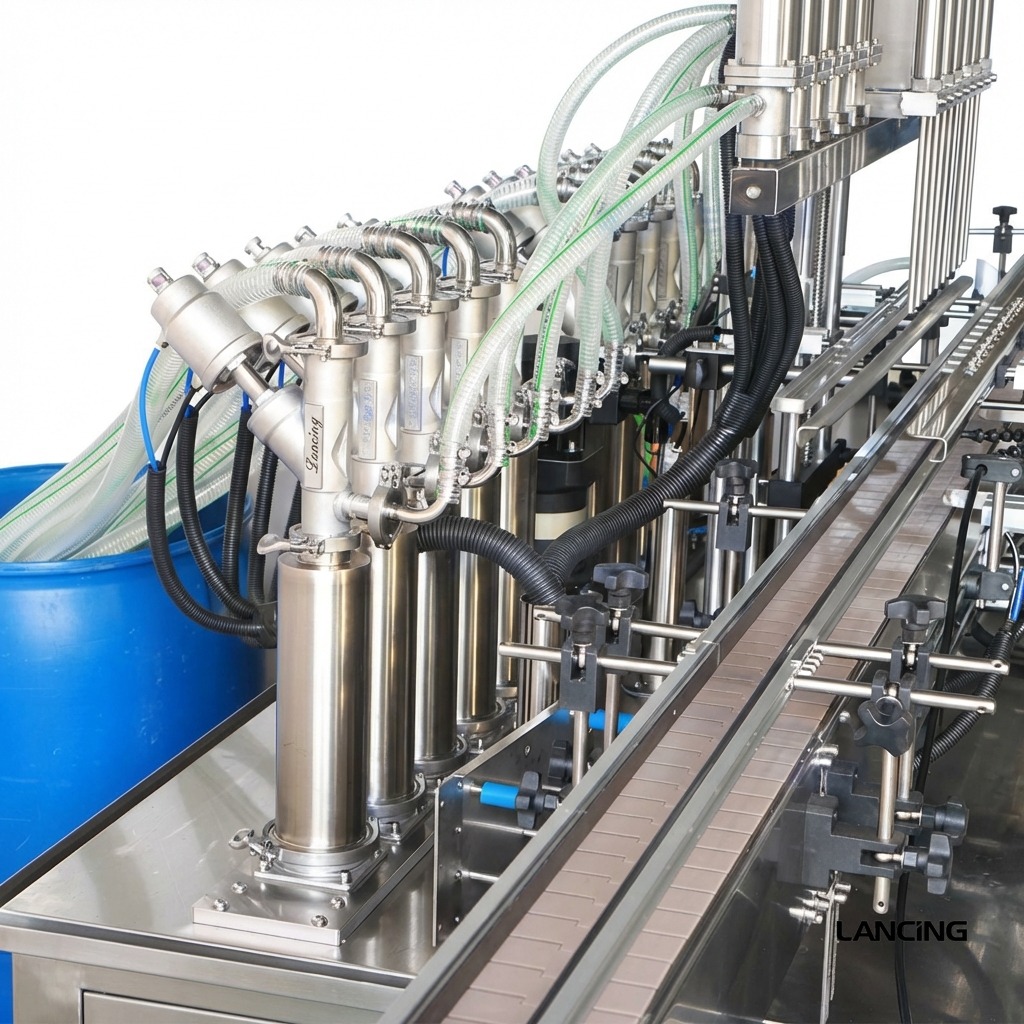

Machine gallery
Auto‑scrolling. Hover to pause.
Tip: Reorder images in the product manager — this carousel follows your order.
Specifications
Reference specification table. Final configuration may vary with options and scope.
| Parameter | Value |
|---|
| Model |
LU-SV10HS |
| Voltage |
220V / 110V |
| Power Consumption |
4 kW |
| Filling Pump Type |
Servo Piston Pump |
| Filling Nozzles |
10 heads (customizable) |
| Filling Speed |
Approx. 30–80 bottles/min (depends on filling range and material) |
| Filling Range |
50–1000 ml (customizable) |
| Filling Accuracy |
±0.5% |
| Conveyor Dimensions (L × W) |
5000 × 114 mm |
| Air Pressure Requirement |
0.5–0.7 MPa |
| Machine Dimensions (L × W × H) |
5000 × 1020 × 1610 mm |
CAD / dimensions
CAD/dimensions are provided in a pop‑out viewer.
No CAD/dimensions drawing uploaded yet.
Site requirements
- Voltage: 220V / 110V
- Power: 4 kW
- Air pressure: 0.5–0.7 MPa
- Footprint / size: 5000 × 114 mm
For the most accurate proposal, include: product viscosity/foaming, container size, closure type, and required units per hour.
Quick answers
Clear answers for buyers, engineers and AI-driven search summaries.
What is Automatic Servo Piston Filling Machine used for?
Automatic Servo Piston Filling Machine 10-Head Paste Filler , sales and related technical services of modern high-tech enterprises. Opens in a new window.
What output can Automatic Servo Piston Filling Machine achieve?
This page lists output at Approx. 30–80 bottles/min (depends on filling range and material). Actual throughput depends on the product, container, fill volume, changeover requirements and overall line setup.
What utilities or site requirements should I plan for?
Voltage: 220V / 110V; Power: 4 kW; Air pressure: 0.5–0.7 MPa
Can Lancing UK help match this machine to my product and container?
Yes. Lancing UK can review your product characteristics, bottle or pack format, closure type, required output and site constraints to confirm the right configuration before supply.
