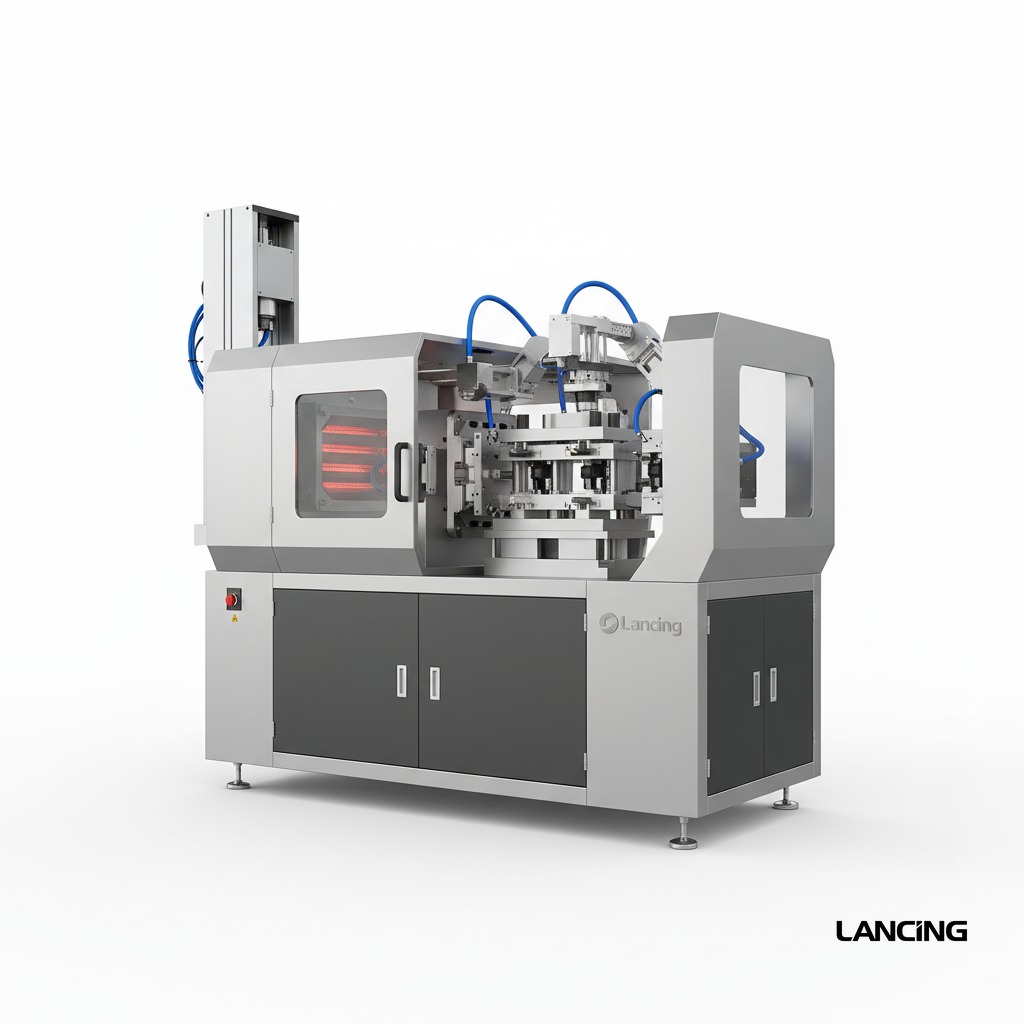

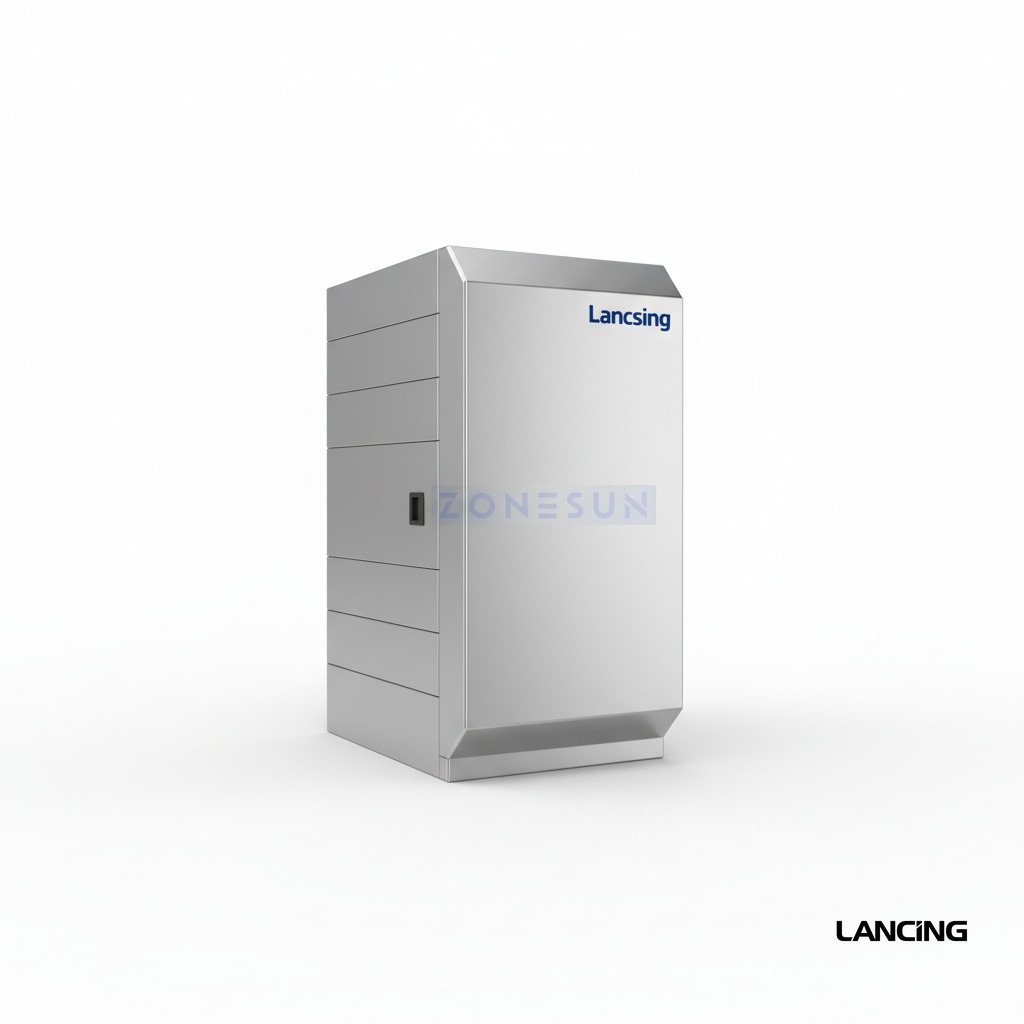

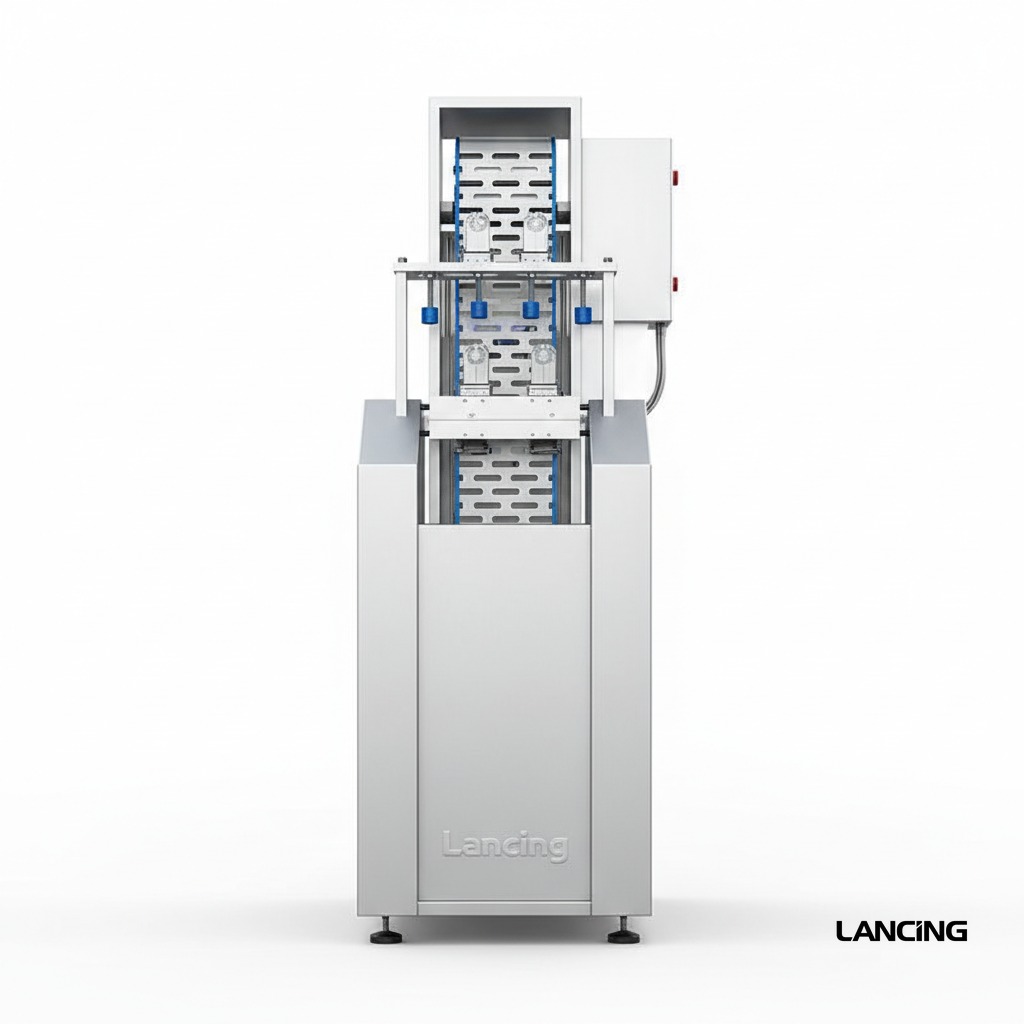

Machine gallery
Auto‑scrolling. Hover to pause.
Tip: Reorder images in the product manager — this carousel follows your order.
Specifications
Reference specification table. Final configuration may vary with options and scope.
| Parameter | Value |
|---|
| Parameter |
LU-SBM32A1 |
| Cavity |
1 |
| Container Volume |
100–2000ml |
| Mold Opening Stroke |
180mm |
| Mold Thickness |
300mm |
| Stretching Stroke |
450mm |
| Capacity |
1300bph |
| Container Diameter |
50–105mm |
| Container Height |
80–280mm |
| Neck Range |
28–38mm |
| Voltage/Frequency |
380V / 50–60Hz |
| Heater Power |
7kW |
| Blowing Pressure |
8bar |
| Low Pressure |
8bar |
| Air Low Consumption |
1.0m³/min |
| High Air Consumption |
1.6m³/min |
| Water Consumption |
16–25L/min |
| Dimension (L×W×H) |
1.8×0.8×1.8m |
| Weight |
2000kg |
| Pass Rate |
≥99.8% |
CAD / dimensions
CAD/dimensions are provided in a pop‑out viewer.
No CAD/dimensions drawing uploaded yet.
Site requirements
- Voltage: 380V / 50–60Hz
- Power: 7kW
- Air consumption: 1.0m³/min
- Footprint / size: 1.8×0.8×1.8m
For the most accurate proposal, include: product viscosity/foaming, container size, closure type, and required units per hour.
Quick answers
Clear answers for buyers, engineers and AI-driven search summaries.
What is Automatic Stretch Blow Molding Bottle Machine used for?
Automatic Stretch Blow Molding Bottle Machine , sales and related technical services of modern high-tech enterprises. Opens in a new window.
What output can Automatic Stretch Blow Molding Bottle Machine achieve?
Final throughput depends on the product, container, fill volume and level of automation selected for the project.
What utilities or site requirements should I plan for?
Voltage: 380V / 50–60Hz; Power: 7kW; Air consumption: 1.0m³/min
Can Lancing UK help match this machine to my product and container?
Yes. Lancing UK can review your product characteristics, bottle or pack format, closure type, required output and site constraints to confirm the right configuration before supply.
