Compact Range

Perfume & Essential Oil Liquid Filling Machine

Enquire now Arrange a Demonstration Call Now
Ready to discuss Perfume & Essential Oil Liquid Filling Machine? Tell us your product, pack size and output target and we will help you shortlist the right configuration.
Call 01494 623015 Get a quote Browse categories

Machine overview

Key information to help you specify the right configuration.

Perfume & Essential Oil Liquid Filling Machine preview

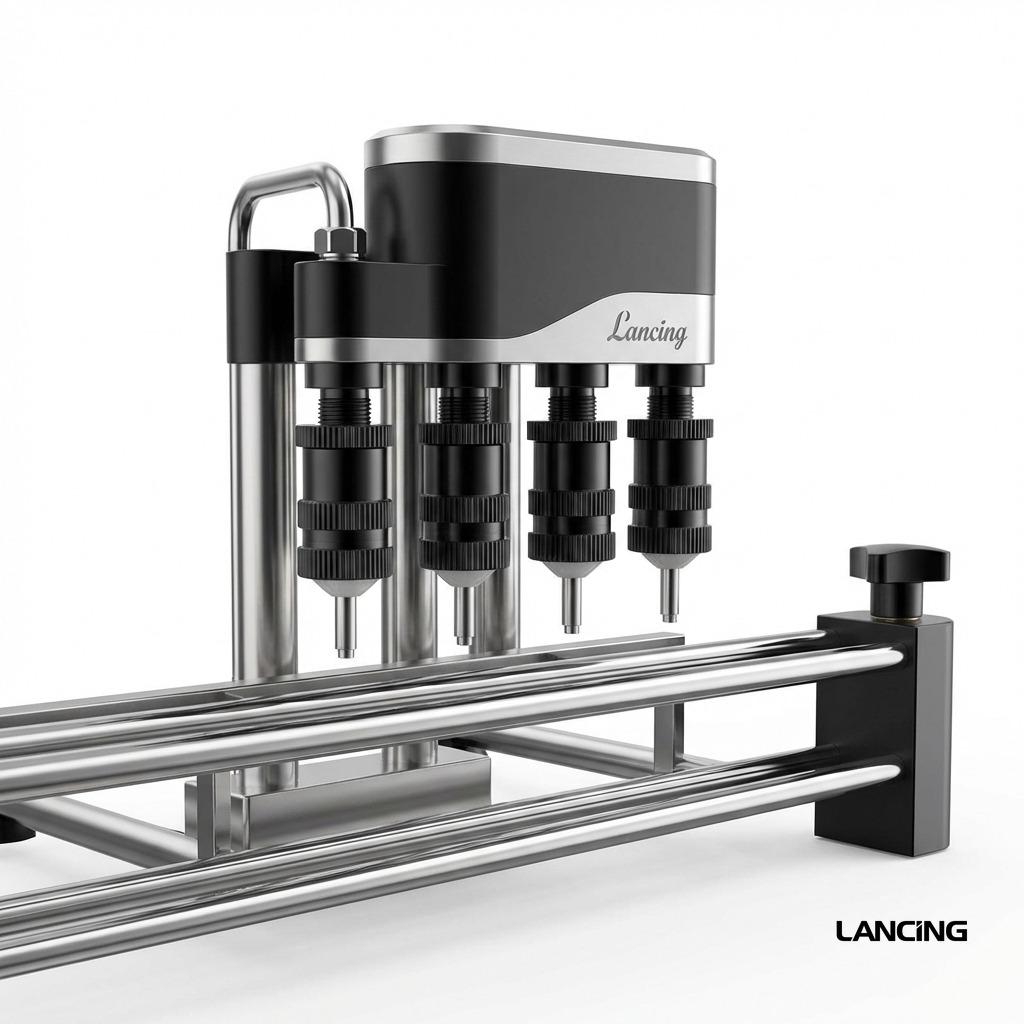

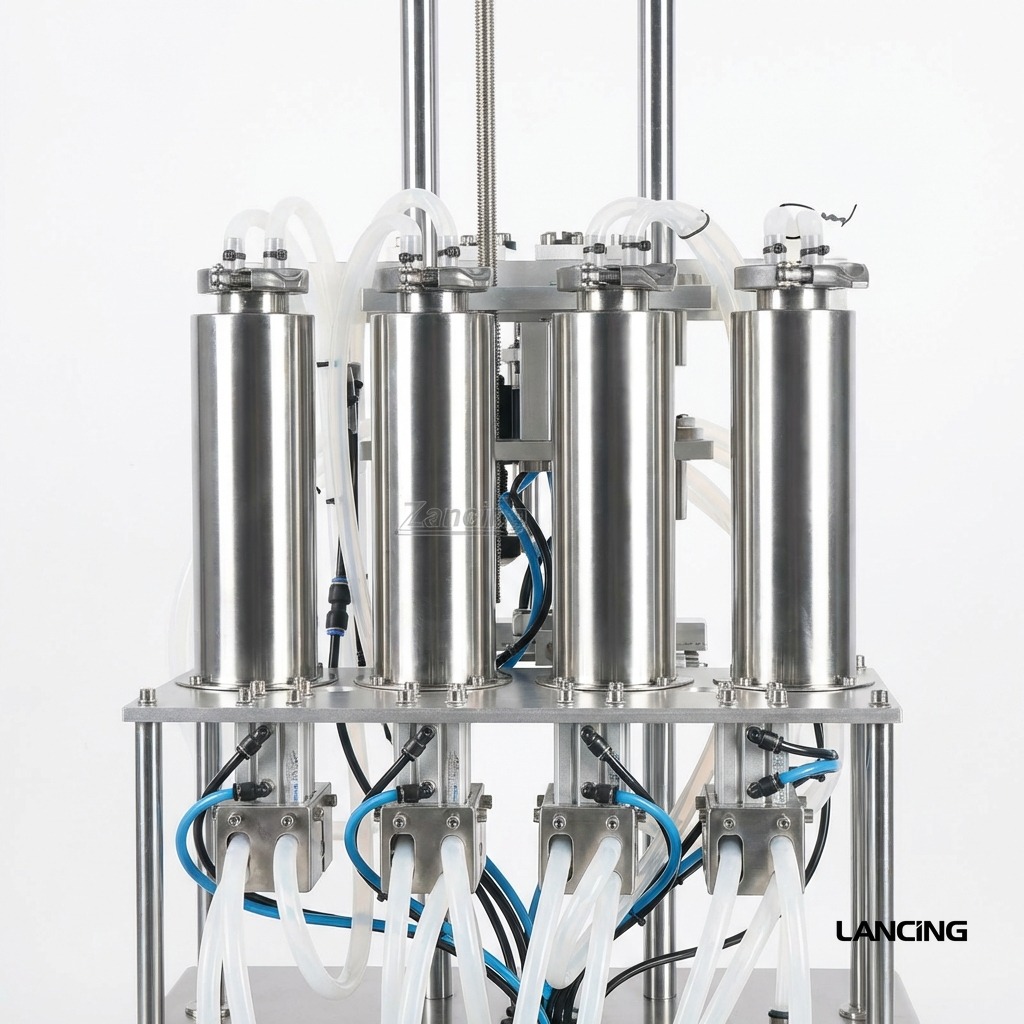

The Lancing UK LU-DTZL500 Liquid Surface Position Filling Machine is designed for precise filling of low-viscosity liquids such as perfume, eye drops, and essential oils. Equipped with four nozzles and adjustable liquid surface control, it ensures consistent fill levels across a wide range of bottle sizes. With a compact desktop design and compatibility with automatic capping and labeling systems, it’s ideal for streamlined, automated production in cosmetic, pharmaceutical, and essential oil industries.
Throughput
20–40 bottles/min (4 nozzles, depends on bottle & liquid)
Throughput depends on product, format and operator workflow.
Format range
5–500ml
Configured to your bottle, closure and fill volume.
Utilities
Approx. 80W
Voltage, air and installation requirements confirmed for your site.

Specifications

Reference specification table. Final configuration may vary with options and scope.

ParameterValue
Machine Model LU-DTZL500
Power Approx. 80W
Filling Range Approx. 5–500ml
Filling Speed 20–40 bottles/min (4 nozzles, depends on bottle & liquid)
Air Pressure Requirement 0.4–0.8MPa
Applicable Bottle Height <200mm
Filling Nozzle Diameter 7mm
Bottle Mouth Diameter <22mm
Minimum Applicable Bottle Diameter 35 mm
Adjustable Liquid Surface Distance 5–20mm
Suitable Bottle Diameter <100mm
Machine Dimensions (L × W × H) Approx. 1170 × 690 × 1180mm
Machine Weight Approx. 71kg
Package Dimensions (L × W × H) Approx. 1100 × 580 × 1090mm
Package Weight Approx. 107kg

CAD / dimensions

CAD/dimensions are provided in a pop‑out viewer.

No CAD/dimensions drawing uploaded yet.

Site requirements

  • Power: Approx. 80W
  • Air pressure: 0.4–0.8MPa
  • Footprint / size: 1170 × 690 × 1180mm
For the most accurate proposal, include: product viscosity/foaming, container size, closure type, and required units per hour.

Quick answers

Clear answers for buyers, engineers and AI-driven search summaries.

What is Perfume & Essential Oil Liquid Filling Machine used for?

The Lancing UK LU-DTZL500 Liquid Surface Position Filling Machine is designed for precise filling of low-viscosity liquids such as perfume, eye drops, and essential oils. Equipped with four nozzles and adjustable liquid surface control, it ensures consistent fill levels across a wide range of bottle sizes.

What output can Perfume & Essential Oil Liquid Filling Machine achieve?

This page lists output at 20–40 bottles/min (4 nozzles, depends on bottle & liquid). Actual throughput depends on the product, container, fill volume, changeover requirements and overall line setup.

What utilities or site requirements should I plan for?

Power: Approx. 80W; Air pressure: 0.4–0.8MPa; Footprint / size: 1170 × 690 × 1180mm

Can Lancing UK help match this machine to my product and container?

Yes. Lancing UK can review your product characteristics, bottle or pack format, closure type, required output and site constraints to confirm the right configuration before supply.
