Reference specification table. Final configuration may vary with options and scope.
| Parameter | Value |
|---|---|
| About | 50kg |
| Power Supply Voltage | 110/220V 50-60HZ |
| Power | 250W |
| Maximum flow velocity | 4000m/min (base on water) |
| Working speed | 1500-3000 bottles/hour(depends on botle size and liquid) |
| Air pressure | 0.3-0.4MPa |
| Filling accuracy | ≤+1% (For water) |
| Diameter of Flling Nozzle | 6/8mm |
| Delay Range | 0.01-999.9s |
| Count Range | 1-99999 Times |
| Machine Size | 1350x710x600mm |
| Machine Weight | About 50kg |
| Filling Volume | 3-1000ml(220V)3- 500ml(110V)since the power of 110v machine is not large, so we recommend 3-500ml for each nozzle |
CAD/dimensions are provided in a pop‑out viewer.
No CAD/dimensions drawing uploaded yet.
Clear answers for buyers, engineers and AI-driven search summaries.

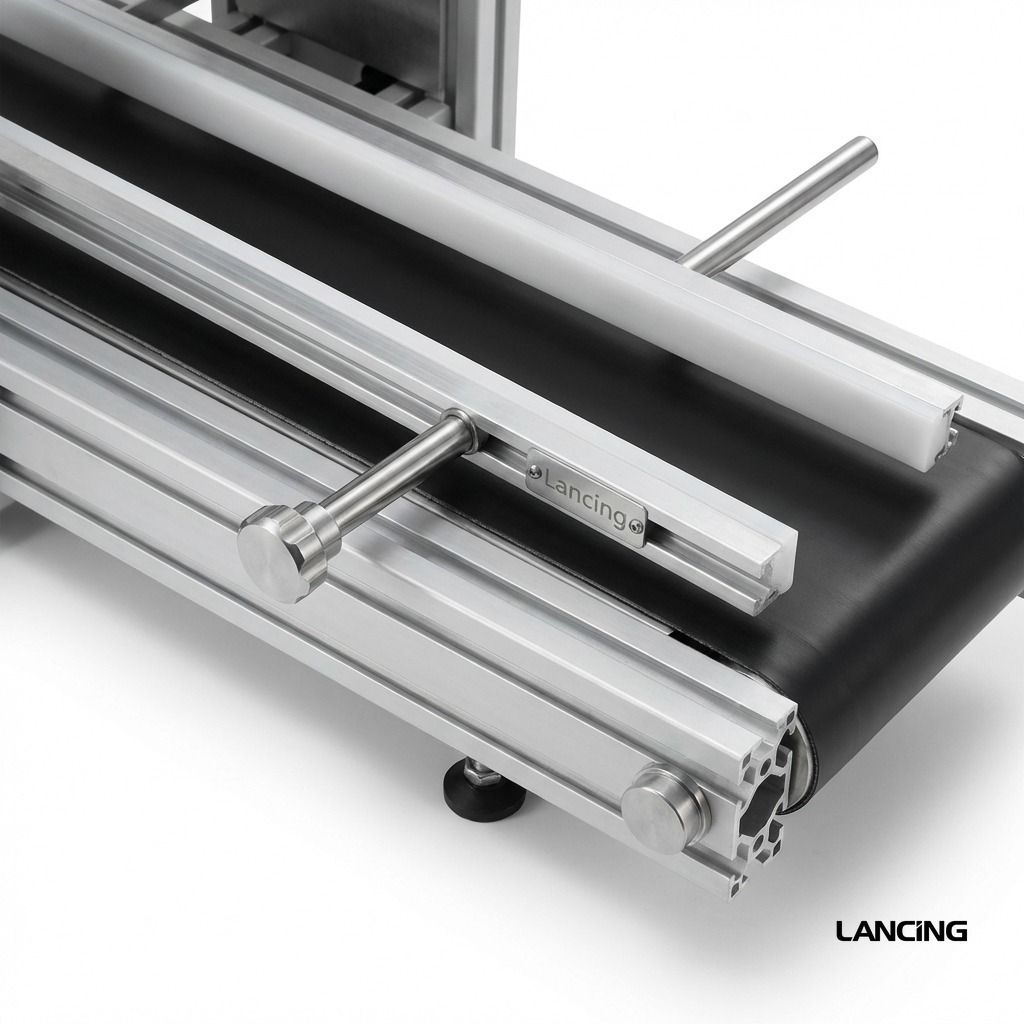

The Lancing UK LU-DTDP2 Desktop CNC Diaphragm Pump Liquid Filling Machine with Conveyor is designed for efficient, precise, and automated liquid filling. Equipped with an infrared sensor, it automatically stops when no bottles are detected, ensuring accuracy and reducing waste.
This page lists output at 1500-3000 bottles/hour(depends on botle size and liquid). Actual throughput depends on the product, container, fill volume, changeover requirements and overall line setup.
Voltage: 110/220V 50-60HZ; Power: 110/220V 50-60HZ; Air pressure: 0.3-0.4MPa
Yes. Lancing UK can review your product characteristics, bottle or pack format, closure type, required output and site constraints to confirm the right configuration before supply.
