LU-GTRP2 Semi-automatic 2 Nozzles Rotor Pump Thick Liquid Filling Machine

Enquire now Arrange a Demonstration Call Now
Ready to discuss LU-GTRP2 Semi-automatic 2 Nozzles Rotor Pump Thick Liquid Filling Machine? Tell us your product, pack size and output target and we will help you shortlist the right configuration.
Call 01494 623015 Get a quote Browse categories

Machine overview

Key information to help you specify the right configuration.

LU-GTRP2 Semi-automatic 2 Nozzles Rotor Pump Thick Liquid Filling Machine preview

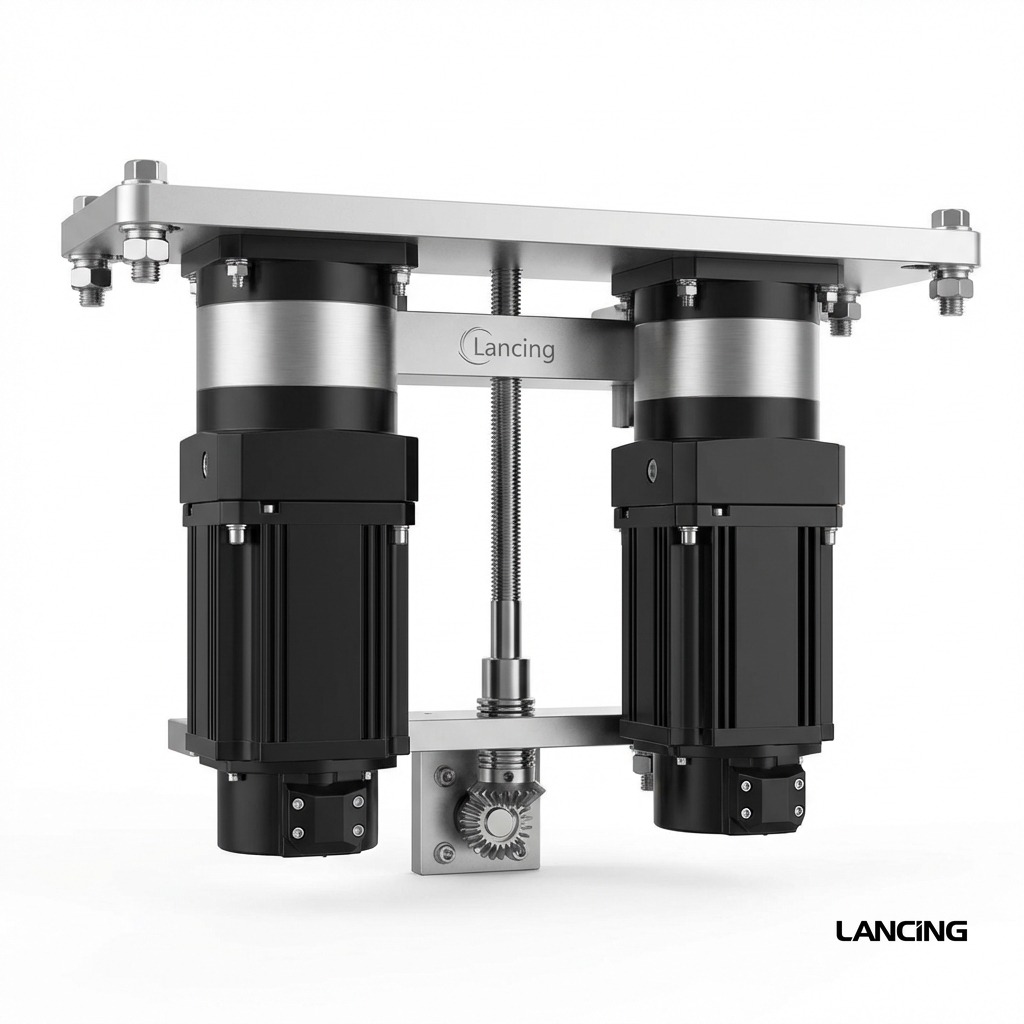

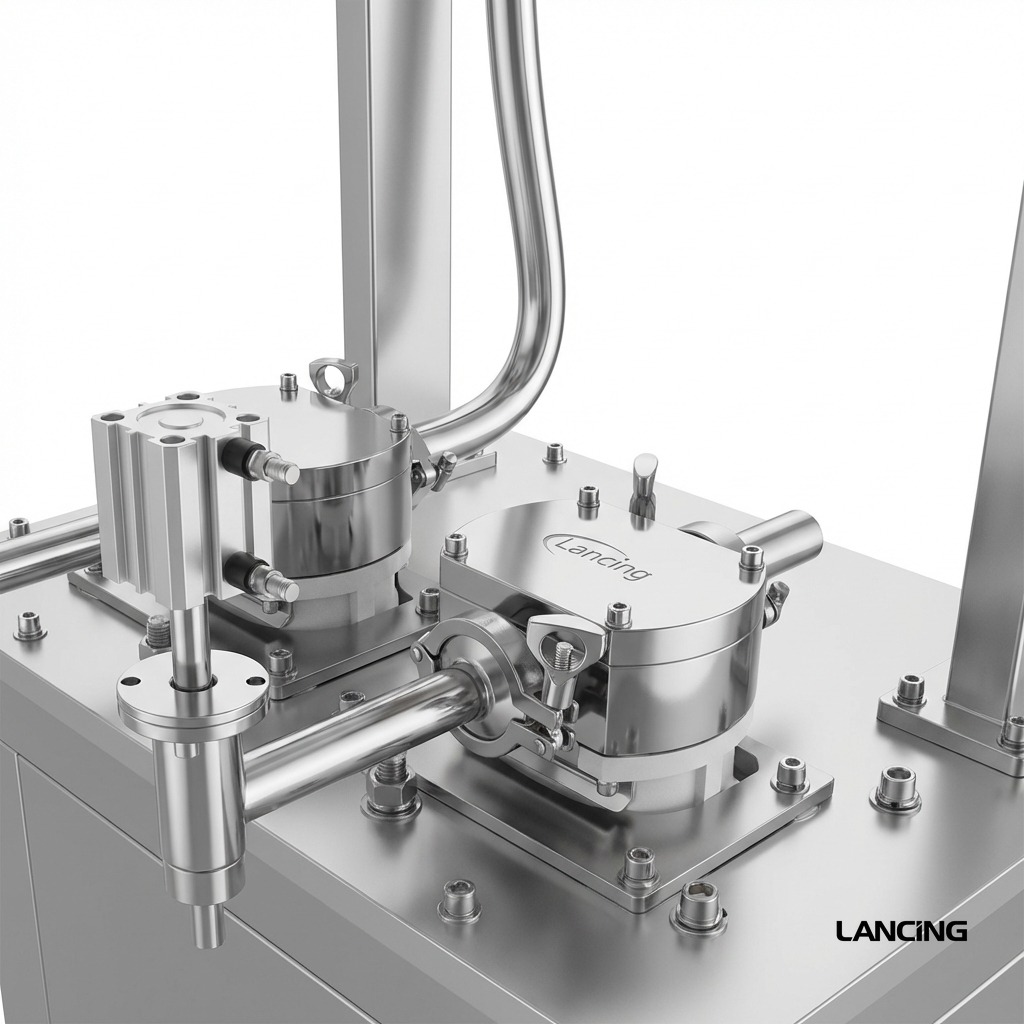

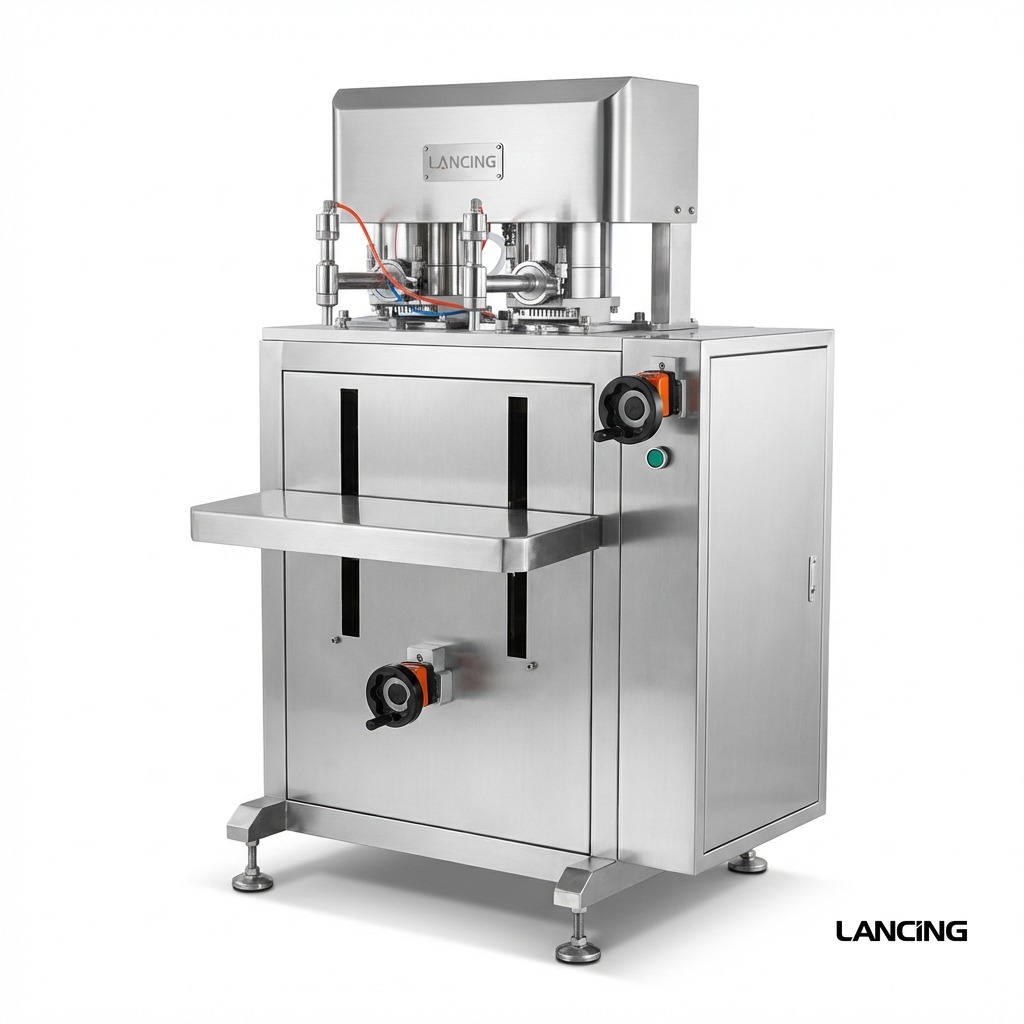

This machine is designed with dual rotary pumps, both driven by a servo motor, providing fast and accurate filling for your liquid products. The machine has a 60L capacity hopper on the top with an air-powered filling nozzle. It features a vertical design with a lift table to place bottles for filling. The PLC control system with a touch screen interface allows for easy operation and precise filling adjustment. The machine also comes with a calibration function to ensure accurate filling every time. Whatever your packaging needs are, you can rely on Lancing UK.
Throughput
About 30 bottles/min (1L)
Throughput depends on product, format and operator workflow.
Format range
Formats adjustable (bottle/closure dependent)
Configured to your bottle, closure and fill volume.
Utilities
110/220V, 50-60HZ, 2kW
Voltage, air and installation requirements confirmed for your site.

Specifications

Reference specification table. Final configuration may vary with options and scope.

ParameterValue
Machine Model LU-GTRP2
Voltage 110/220V, 50-60HZ, 2kW
Filling Pump Rotor pump2
Filling Drive Servo motor2, 3000rpm
Recommend Filling Volume 5-5000ml
Filling Accuracy ≤ ±1%
Filling Nozzle Size Φ8mm
Hopper Size 600 360 400mm(L W H) / 60L
Working Speed About 30 bottles/min (1L)
Machine Size About 820 620 1700mm(L W H)
Machine Weight About 128kg

CAD / dimensions

CAD/dimensions are provided in a pop‑out viewer.

No CAD/dimensions drawing uploaded yet.

Site requirements

  • Voltage: 110/220V, 50-60HZ, 2kW
  • Footprint / size: Φ8mm
For the most accurate proposal, include: product viscosity/foaming, container size, closure type, and required units per hour.

Quick answers

Clear answers for buyers, engineers and AI-driven search summaries.

What is LU-GTRP2 Semi-automatic 2 Nozzles Rotor Pump Thick Liquid Filling Machine used for?

This machine is designed with dual rotary pumps, both driven by a servo motor, providing fast and accurate filling for your liquid products. The machine has a 60L capacity hopper on the top with an air-powered filling nozzle.

What output can LU-GTRP2 Semi-automatic 2 Nozzles Rotor Pump Thick Liquid Filling Machine achieve?

This page lists output at About 30 bottles/min (1L). Actual throughput depends on the product, container, fill volume, changeover requirements and overall line setup.

What utilities or site requirements should I plan for?

Voltage: 110/220V, 50-60HZ, 2kW; Footprint / size: Φ8mm

Can Lancing UK help match this machine to my product and container?

Yes. Lancing UK can review your product characteristics, bottle or pack format, closure type, required output and site constraints to confirm the right configuration before supply.
