Machine overview

Key information to help you specify the right configuration.

Servo Peristaltic Pump Juice Beverage Liquid Liquid Filling Machine preview

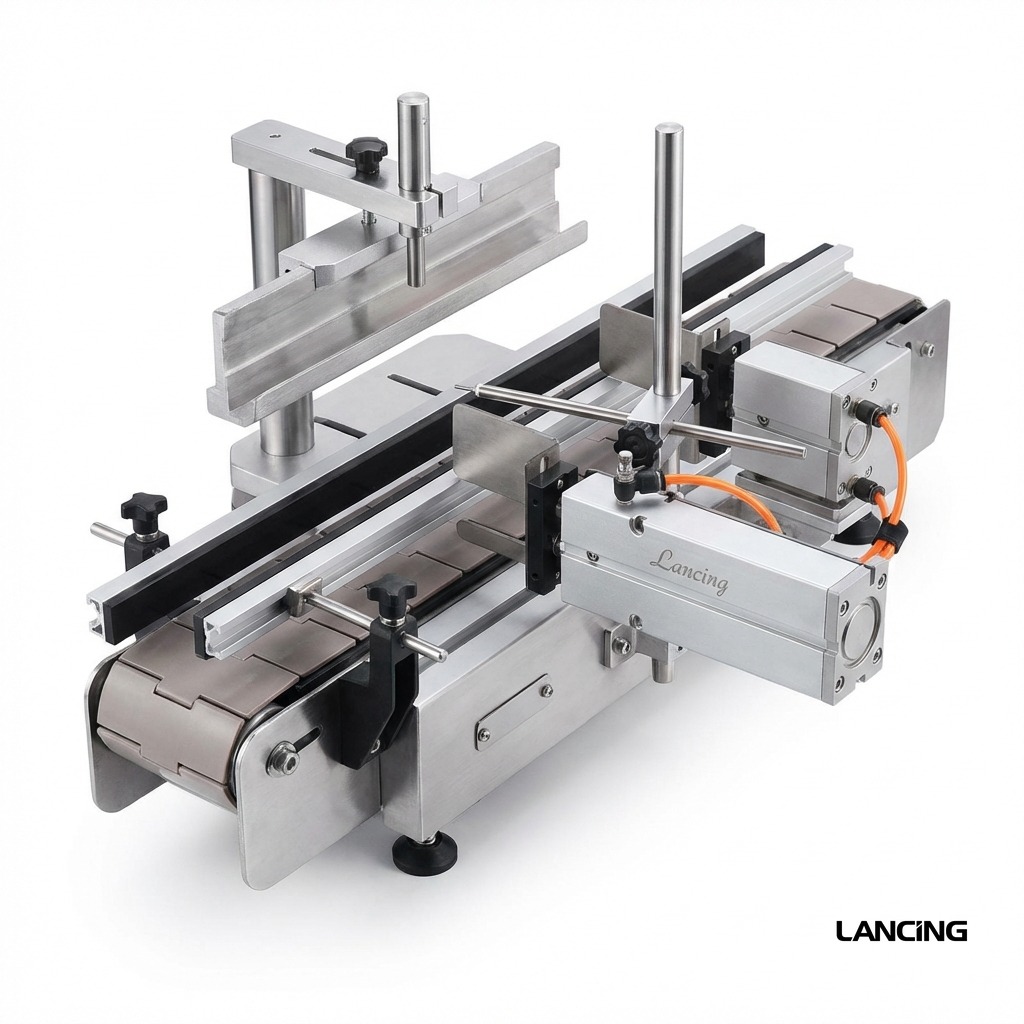

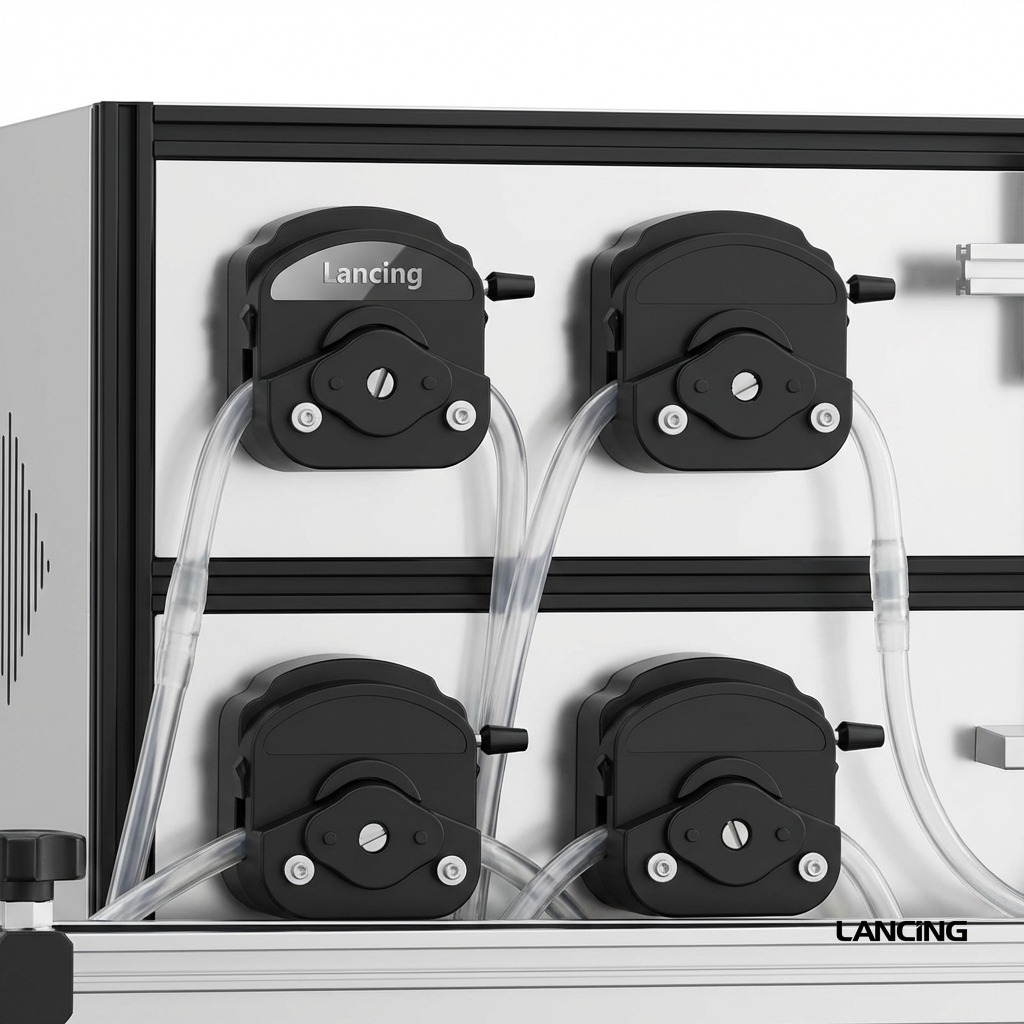

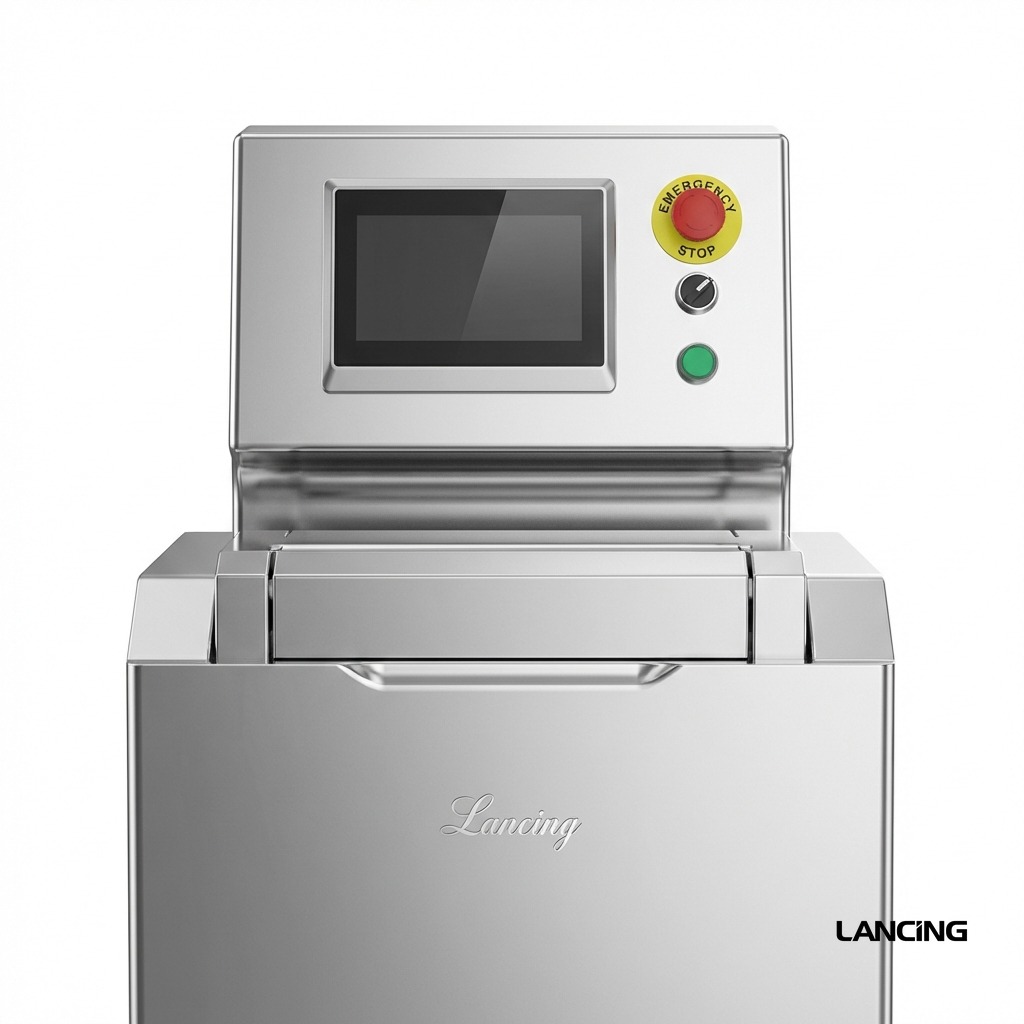

This Lancing UK LU-SVPP80C automatic filling machine is designed for efficiency and precision . Featuring four filling heads , each powered by a peristaltic pump and driven by a servo motor , it ensures accurate and consistent filling volumes. The filling heads are equipped with a pneumatic lifting mechanism , and a pneumatic anti-drip bar prevents leaks after filling. The user-friendly touch screen interface allows for easy operation and adjustments, making it ideal for various liquid filling applications.
Throughput
Configurable (confirm during quote)
Throughput depends on product, format and operator workflow.
Format range
About 10-500ml (For filling capacities not within this range, we recommend customizing the machine.)
Configured to your bottle, closure and fill volume.
Utilities
110/220V 50-60HZ 2KW
Voltage, air and installation requirements confirmed for your site.

Specifications

Reference specification table. Final configuration may vary with options and scope.

ParameterValue
Model LU-SVPP80C
Voltage 110/220V 50-60HZ 2KW
Filling pump Peristaltic pump
Max flow rate 2.4L/min4
Container size Φ20-100mm H50-300mm
Recommend filling range About 10-500ml (For filling capacities not within this range, we recommend customizing the machine.)
Working capacity About 10-20BPM (based on 100ml water, this depends on filling range and filling material)
Size of air compressor connector OD8mm
Machine size About 2000×800×1800mm
Package size About 2070×800×1740mm
Package weight About 251kg.

CAD / dimensions

CAD/dimensions are provided in a pop‑out viewer.

No CAD/dimensions drawing uploaded yet.

Site requirements

  • Voltage: 110/220V 50-60HZ 2KW
  • Air pressure: OD8mm
  • Footprint / size: Φ20-100mm H50-300mm
For the most accurate proposal, include: product viscosity/foaming, container size, closure type, and required units per hour.

Quick answers

Clear answers for buyers, engineers and AI-driven search summaries.

What is Servo Peristaltic Pump Juice Beverage Liquid Liquid Filling Machine used for?

This Lancing UK LU-SVPP80C automatic filling machine is designed for efficiency and precision . Featuring four filling heads , each powered by a peristaltic pump and driven by a servo motor , it ensures accurate and consistent filling volumes.

What output can Servo Peristaltic Pump Juice Beverage Liquid Liquid Filling Machine achieve?

Final throughput depends on the product, container, fill volume and level of automation selected for the project.

What utilities or site requirements should I plan for?

Voltage: 110/220V 50-60HZ 2KW; Air pressure: OD8mm; Footprint / size: Φ20-100mm H50-300mm

Can Lancing UK help match this machine to my product and container?

Yes. Lancing UK can review your product characteristics, bottle or pack format, closure type, required output and site constraints to confirm the right configuration before supply.
