Semi Automatic

LU-GT1 Single Nozzle Pneumatic Paste & Viscous Liquid Filling Machine

Enquire now Arrange a Demonstration Call Now
Ready to discuss LU-GT1 Single Nozzle Pneumatic Paste & Viscous Liquid Filling Machine? Tell us your product, pack size and output target and we will help you shortlist the right configuration.
Call 01494 623015 Get a quote Browse categories

Machine overview

Key information to help you specify the right configuration.

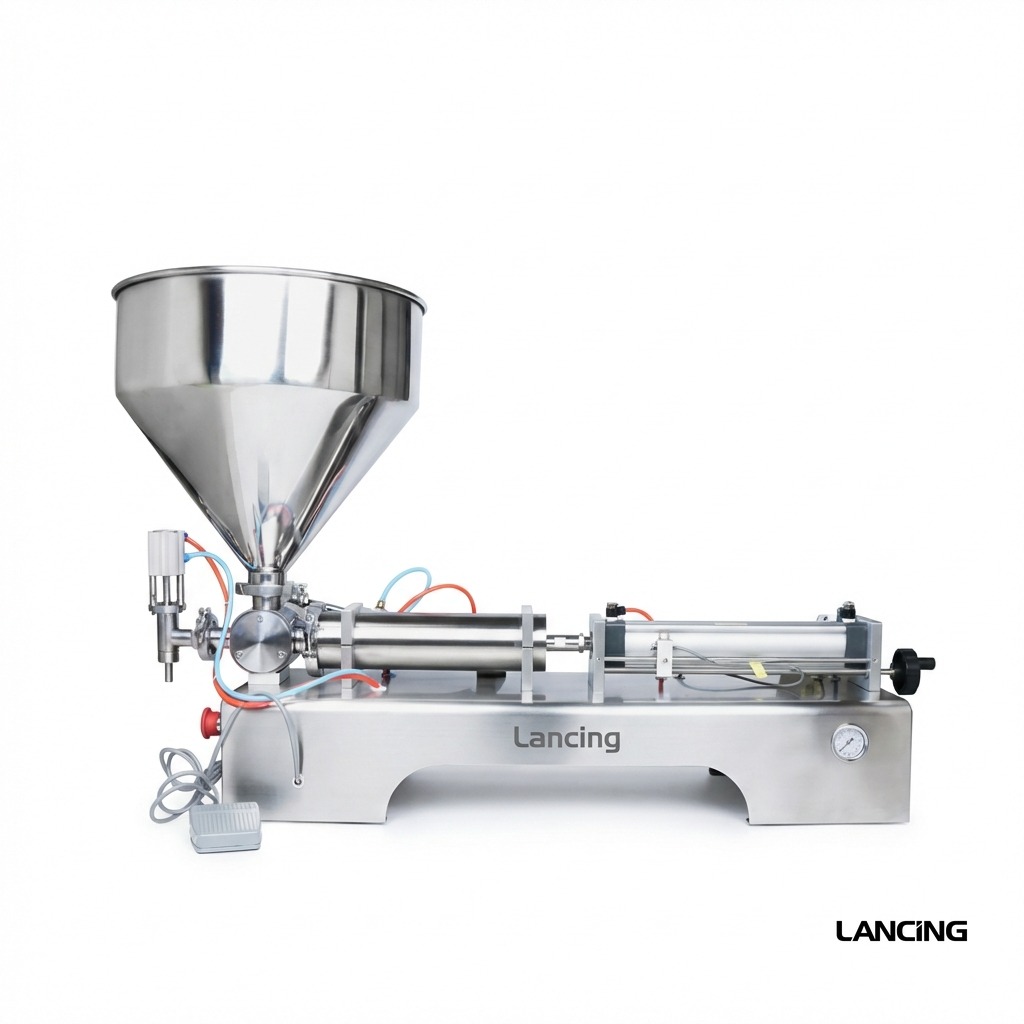

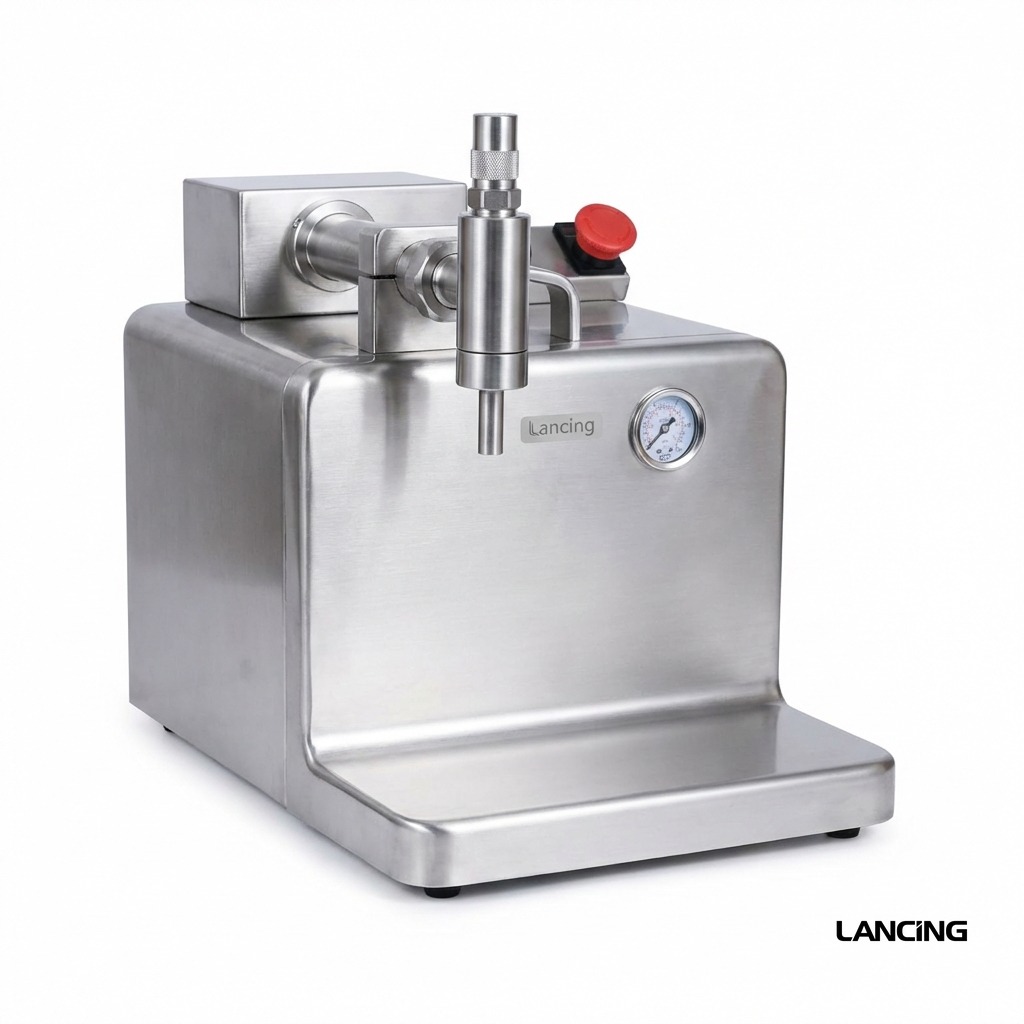

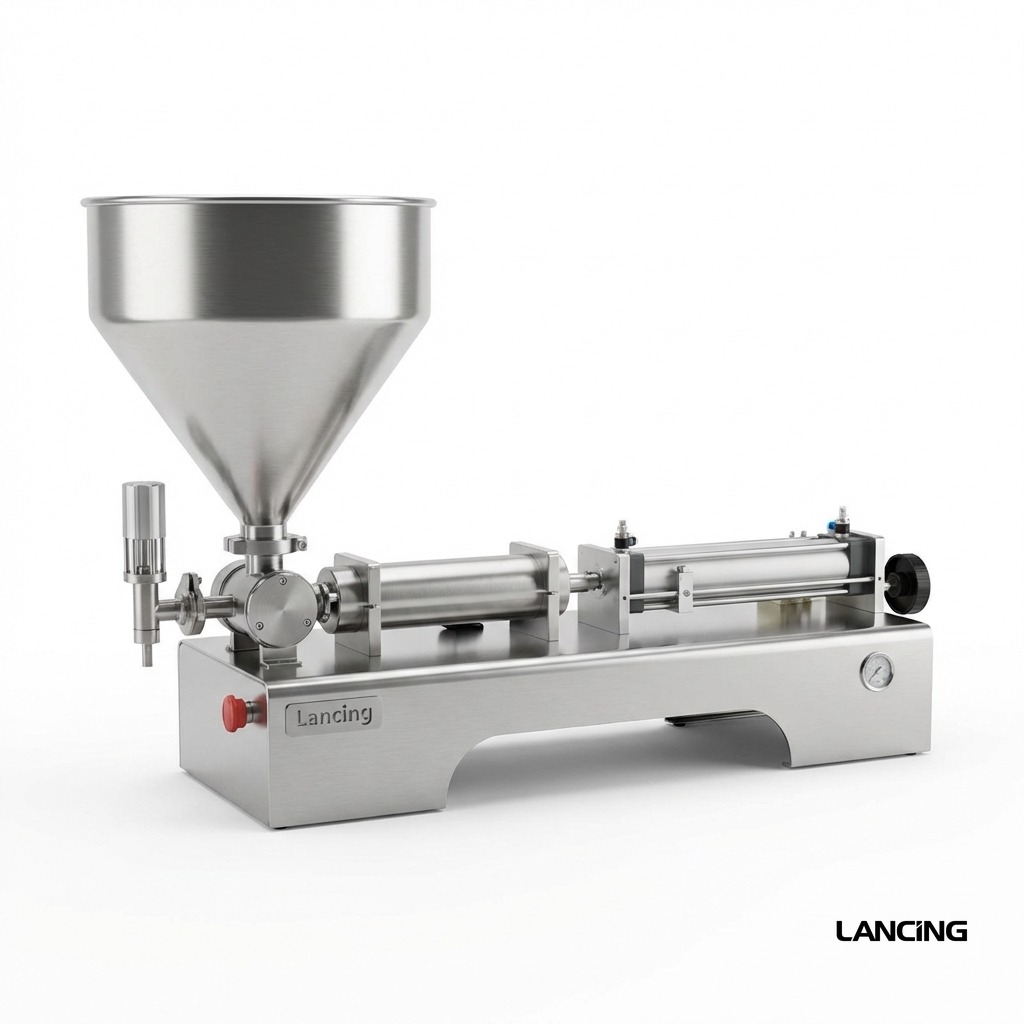

LU-GT1 Single Nozzle Pneumatic Paste & Viscous Liquid Filling Machine preview
This pneumatic paste filling machine is suitable for filling thick liquid like gel,shampoo,soybean sauce,honey,pepper sauce etc.The filling range and speed is adjustable according to production needs.It is widely used in food,cosmetics,beverage industries. Machine Model: LU-GT1 Paste Filling Machine
Throughput
5–20 bottles/min
Throughput depends on product, format and operator workflow.
Format range
Formats adjustable (bottle/closure dependent)
Configured to your bottle, closure and fill volume.
Utilities
220V / 110V, 50–60Hz
Voltage, air and installation requirements confirmed for your site.

Specifications

Reference specification table. Final configuration may vary with options and scope.

ParameterValue
Voltage Supply 220V / 110V, 50–60Hz
Power 10W
Filling Accuracy ≤ ±0.5%
Filling Speed 5–20 bottles/min
Filling Volume Options 10–100ml / 10–200ml / 30–300ml / 50–500ml / 100–1000ml / 500–2500ml / 1000–5000ml
Working Air Pressure 0.4–0.6MPa
Air Compressor Connector Size Outer Diameter 8mm
Air Consumption ≥ 0.1m³/min
Machine Model LU-GT1 Paste Filling Machine

CAD / dimensions

CAD/dimensions are provided in a pop‑out viewer.

No CAD/dimensions drawing uploaded yet.

Site requirements

  • Voltage: 220V / 110V, 50–60Hz
  • Power: 10W
  • Air pressure: 0.4–0.6MPa
  • Air consumption: ≥ 0.1m³/min
  • Footprint / size: Outer Diameter 8mm
For the most accurate proposal, include: product viscosity/foaming, container size, closure type, and required units per hour.

Quick answers

Clear answers for buyers, engineers and AI-driven search summaries.

What is LU-GT1 Single Nozzle Pneumatic Paste & Viscous Liquid Filling Machine used for?

This pneumatic paste filling machine is suitable for filling thick liquid like gel,shampoo,soybean sauce,honey,pepper sauce etc.The filling range and speed is adjustable according to production needs.It is widely used in food,cosmetics,beverage industries. Machine Model: LU-GT1 Paste Filling Machine

What output can LU-GT1 Single Nozzle Pneumatic Paste & Viscous Liquid Filling Machine achieve?

This page lists output at 5–20 bottles/min. Actual throughput depends on the product, container, fill volume, changeover requirements and overall line setup.

What utilities or site requirements should I plan for?

Voltage: 220V / 110V, 50–60Hz; Power: 10W; Air pressure: 0.4–0.6MPa

Can Lancing UK help match this machine to my product and container?

Yes. Lancing UK can review your product characteristics, bottle or pack format, closure type, required output and site constraints to confirm the right configuration before supply.
