Pro Range

LU-SPL4 Automatic Bottle Wrapping & Shrinking System

Enquire now Arrange a Demonstration Call Now
Ready to discuss LU-SPL4 Automatic Bottle Wrapping & Shrinking System? Tell us your product, pack size and output target and we will help you shortlist the right configuration.
Call 01494 623015 Get a quote Browse categories

Machine overview

Key information to help you specify the right configuration.

LU-SPL4 Automatic Bottle Wrapping & Shrinking System preview

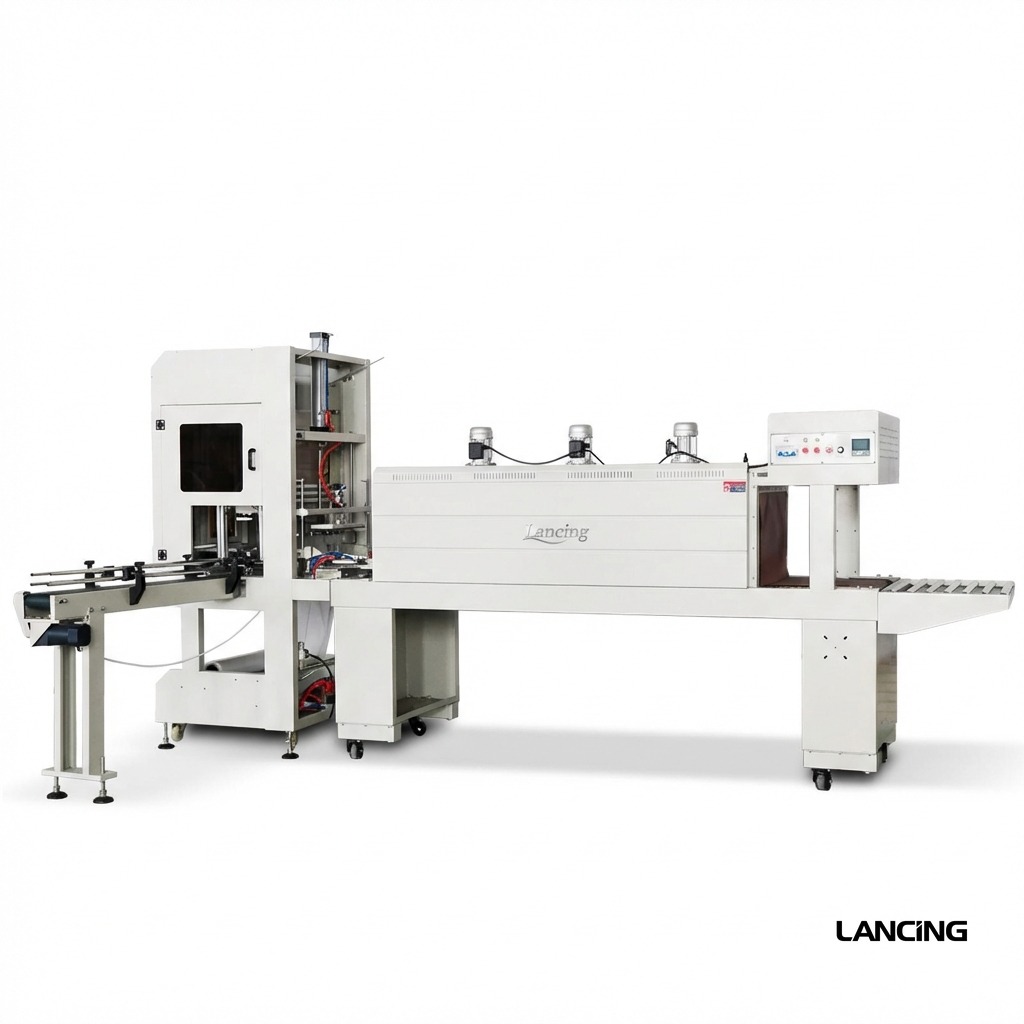

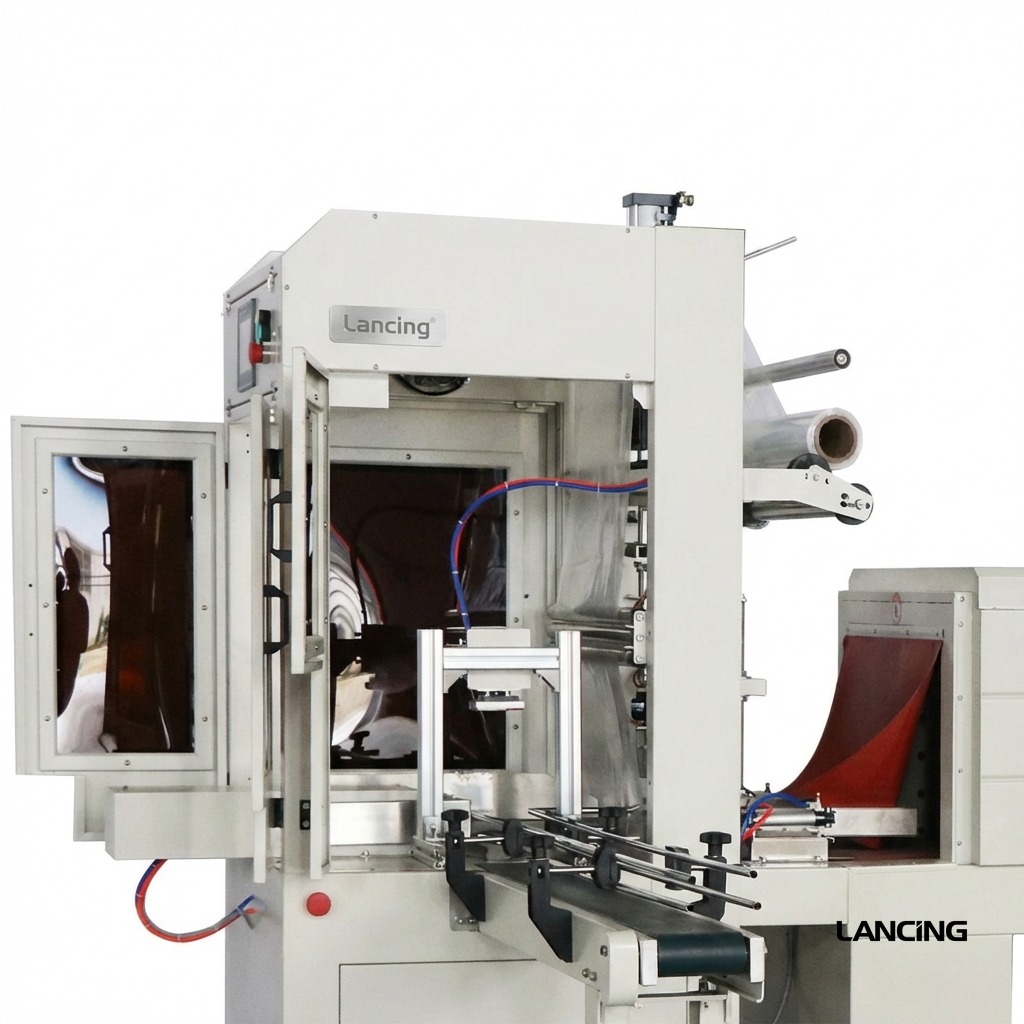

The Lancing UK LU-SPL4 Automatic Bottles Wrapping and Shrinking Packaging Machine is a complete solution for high-efficiency beverage packaging. Designed to wrap and seal shrink film around bottled water, soft drinks, or similar products, it integrates seamlessly with fillers, cap sealers, and label applicators to form a fully automated production line. The LU-QZD7040S handles precise film wrapping using PE shrink film, while the LU-BSPN6040 shrink tunnel ensures a tight, professional finish with adjustable speed and multi-film compatibility. Built for industrial performance, this system delivers speed, consistency, and reliability. LU-QZD7040S PE Film Wrapping Machine Model： LU-QZD7040S
Throughput
0–6 packs per minute
Throughput depends on product, format and operator workflow.
Format range
60–120 mm
Configured to your bottle, closure and fill volume.
Utilities
220V, 50–60Hz
Voltage, air and installation requirements confirmed for your site.

Specifications

Reference specification table. Final configuration may vary with options and scope.

ParameterValue
Voltage 220V, 50–60Hz
Power Consumption 2 kW
Packing Speed 0–6 packs per minute
Bottle Size Range Diameter 60–120 mm
Height 100–330 mm
Max Package Size 400 × 120 × 330 mm
Min Package Size 240 × 120 × 100 mm
Payload Capacity Up to 20 kg
Film Roll Width Max 560 mm
Film Thickness 0.03–0.25 mm
Applicable Film Type PE shrink film only
Machine Dimensions Approx. 2150 × 1200 × 2020 mm
Machine Weight Approx. 350 kg

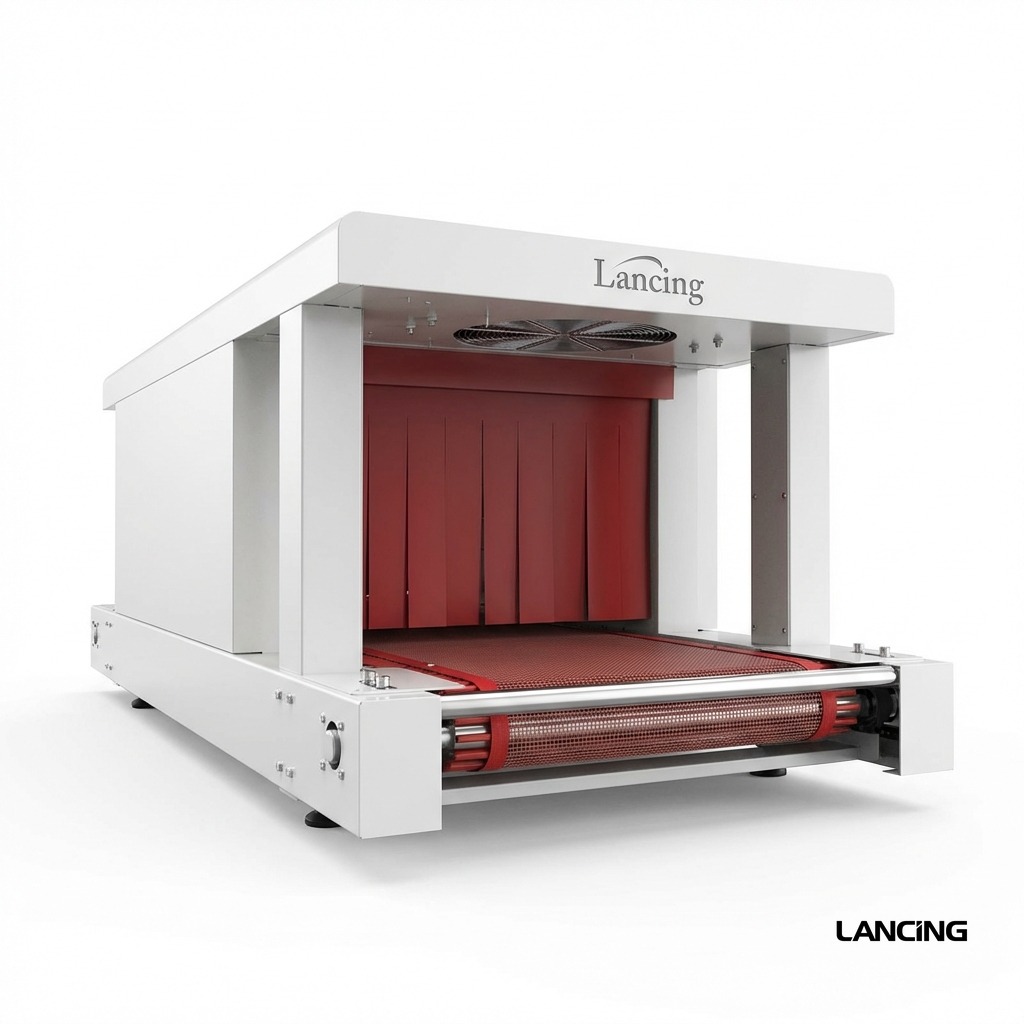

Model LU-BSPN6040
Tunnel Dimensions Approx. 1800 × 600 × 400 mm
Conveying Speed 0–15 meters per minute
Applicable Shrink Film PVC / POF / PE
Package Dimensions Approx. 2880 × 930 × 1500 mm
Package Weight Approx. 350 kg

CAD / dimensions

CAD/dimensions are provided in a pop‑out viewer.

No CAD/dimensions drawing uploaded yet.

Site requirements

  • Voltage: 220V, 50–60Hz
  • Power: 2 kW
  • Footprint / size: 60–120 mm
For the most accurate proposal, include: product viscosity/foaming, container size, closure type, and required units per hour.

Quick answers

Clear answers for buyers, engineers and AI-driven search summaries.

What is LU-SPL4 Automatic Bottle Wrapping & Shrinking System used for?

The Lancing UK LU-SPL4 Automatic Bottles Wrapping and Shrinking Packaging Machine is a complete solution for high-efficiency beverage packaging. Designed to wrap and seal shrink film around bottled water, soft drinks, or similar products, it integrates seamlessly with fillers, cap sealers, and label applicators to form a fully automated production line.

What output can LU-SPL4 Automatic Bottle Wrapping & Shrinking System achieve?

This page lists output at 0–6 packs per minute. Actual throughput depends on the product, container, fill volume, changeover requirements and overall line setup.

What utilities or site requirements should I plan for?

Voltage: 220V, 50–60Hz; Power: 2 kW; Footprint / size: 60–120 mm

Can Lancing UK help match this machine to my product and container?

Yes. Lancing UK can review your product characteristics, bottle or pack format, closure type, required output and site constraints to confirm the right configuration before supply.
