LU-SPL6 Automatic Heat Shrink Tunnel Shrinking Wrapping Machine

Enquire now Arrange a Demonstration Call Now
Ready to discuss LU-SPL6 Automatic Heat Shrink Tunnel Shrinking Wrapping Machine? Tell us your product, pack size and output target and we will help you shortlist the right configuration.
Call 01494 623015 Get a quote Browse categories

Machine overview

Key information to help you specify the right configuration.

LU-SPL6 Automatic Heat Shrink Tunnel Shrinking Wrapping Machine preview

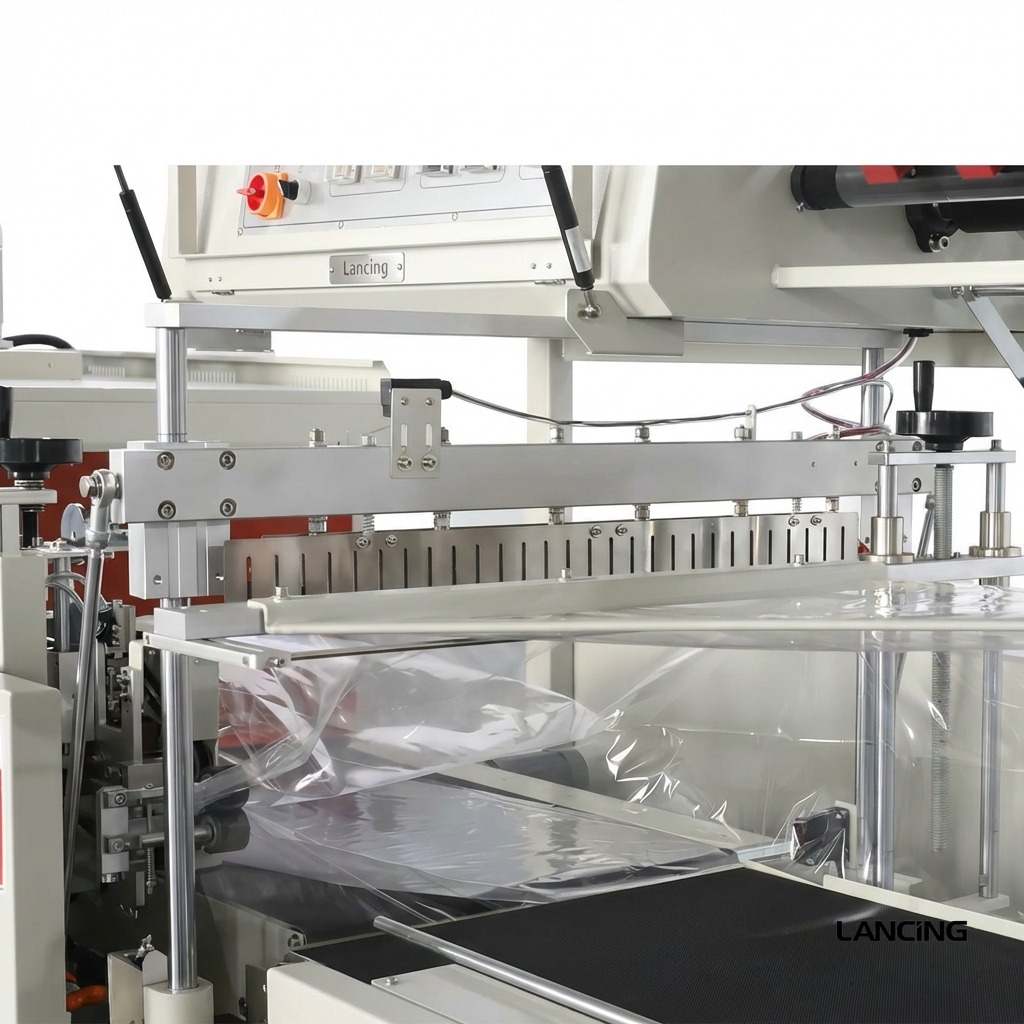

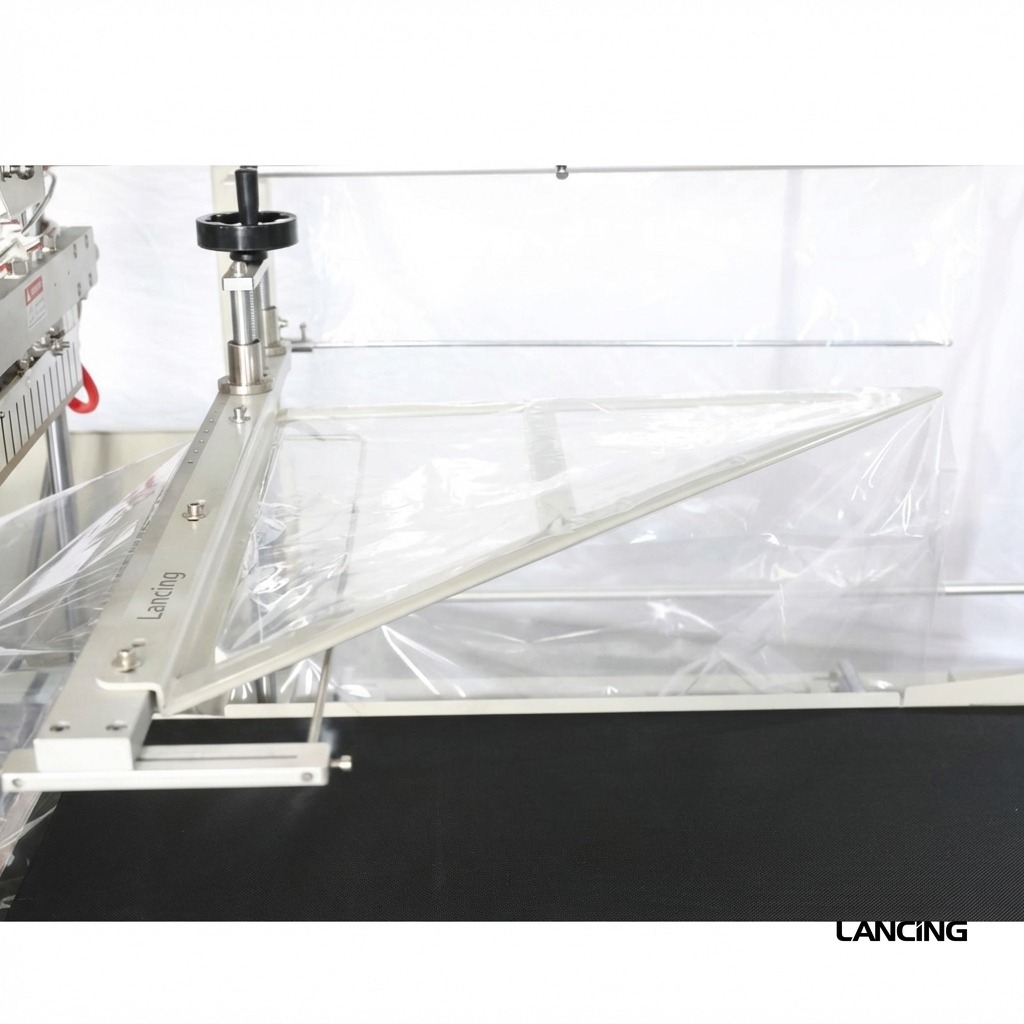

This automatic shrink wrap machine combines a side sealing system and heat shrink tunnel into one efficient unit. It automatically feeds POF, PE, or PVC shrink film , performs precise side sealing, and delivers a clean, tight package through the shrink tunnel . Ideal for packaging boxes, books, and electronics, this shrink packaging machine boosts productivity and ensures professional packaging results.
Throughput
15–30 bag/min
Throughput depends on product, format and operator workflow.
Format range
40kg max
Configured to your bottle, closure and fill volume.
Utilities
220V 50-60Hz
Voltage, air and installation requirements confirmed for your site.

Specifications

Reference specification table. Final configuration may vary with options and scope.

ParameterValue
Model LU-BF750
Power supply voltage 220V 50-60Hz
Air pressure 0.5Mpa
Power 2.26Kw
Packaging speed 15–30 bag/min
Cutter Size 870mm × 770
Maximum Package Size W+H ≤ 700mm, L+H ≤ 800mm, H ≤ 150mm
Conveyor Belt Width 600mm
Applicable shrink film POF/PE
Film shrinkage ratio 60%
Table height 780mm (adjustable)
Overall dimensions (L × W × H) 2350 × 1350 × 1630mm
Machine weight 440kg
Conveyor Loading Weight 15–20kg
Voltage 380V 50/60Hz
Carrying capacity 40kg max
Furnace Road Size (mm) 1800 × 750 × 400mm
Outline dimension (mm) 2100 × 1010 × 1470mm
Transporting velocity 0–15m/min

CAD / dimensions

CAD/dimensions are provided in a pop‑out viewer.

No CAD/dimensions drawing uploaded yet.

Site requirements

  • Voltage: 220V 50-60Hz
  • Power: 220V 50-60Hz
  • Air pressure: 0.5Mpa
  • Footprint / size: 870mm × 770
For the most accurate proposal, include: product viscosity/foaming, container size, closure type, and required units per hour.

Quick answers

Clear answers for buyers, engineers and AI-driven search summaries.

What is LU-SPL6 Automatic Heat Shrink Tunnel Shrinking Wrapping Machine used for?

This automatic shrink wrap machine combines a side sealing system and heat shrink tunnel into one efficient unit. It automatically feeds POF, PE, or PVC shrink film , performs precise side sealing, and delivers a clean, tight package through the shrink tunnel .

What output can LU-SPL6 Automatic Heat Shrink Tunnel Shrinking Wrapping Machine achieve?

This page lists output at 15–30 bag/min. Actual throughput depends on the product, container, fill volume, changeover requirements and overall line setup.

What utilities or site requirements should I plan for?

Voltage: 220V 50-60Hz; Power: 220V 50-60Hz; Air pressure: 0.5Mpa

Can Lancing UK help match this machine to my product and container?

Yes. Lancing UK can review your product characteristics, bottle or pack format, closure type, required output and site constraints to confirm the right configuration before supply.
