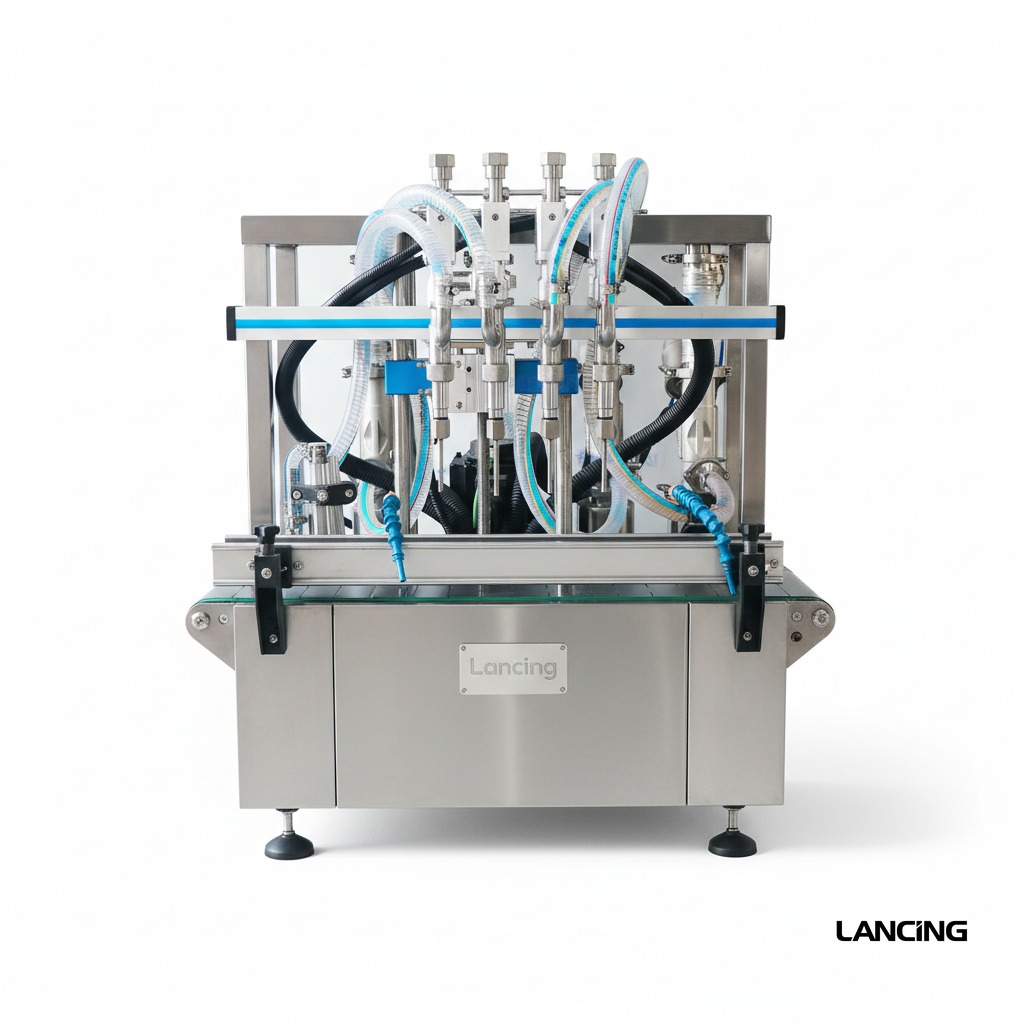

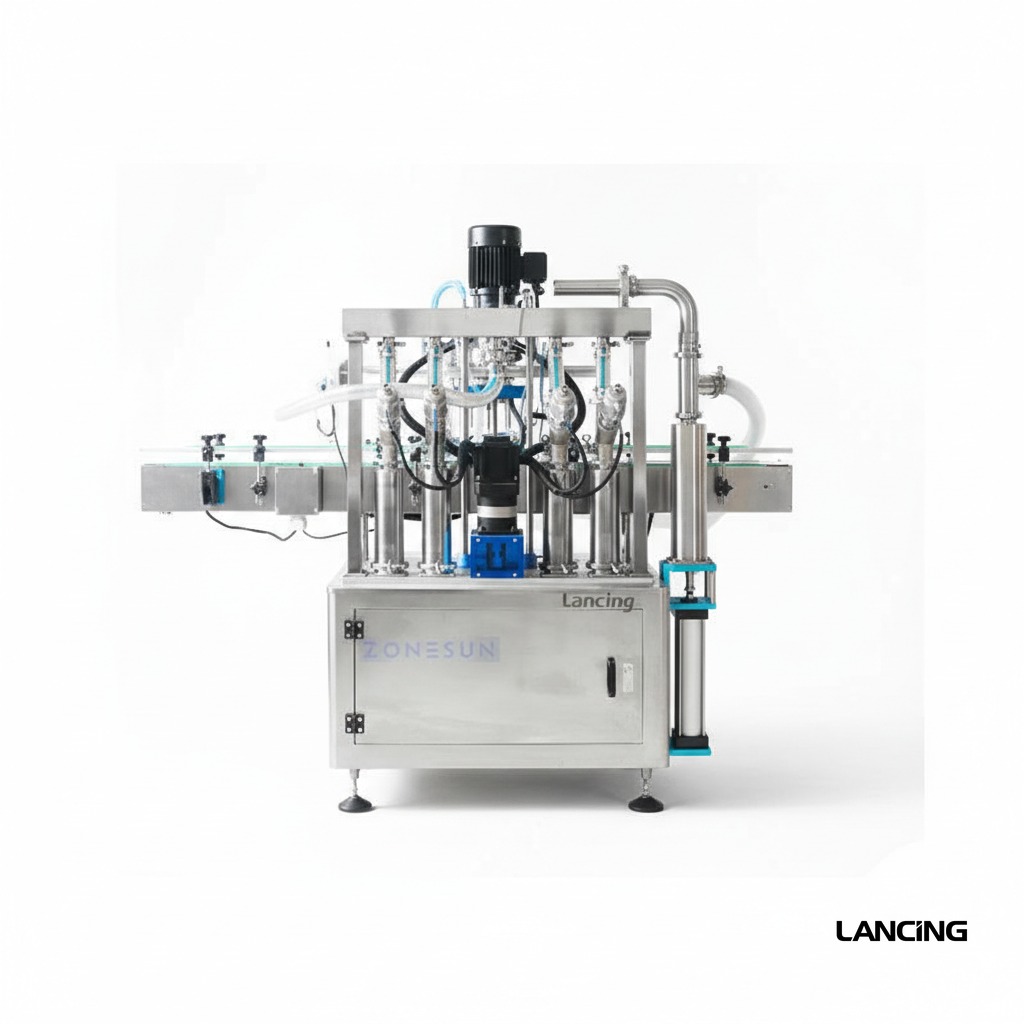

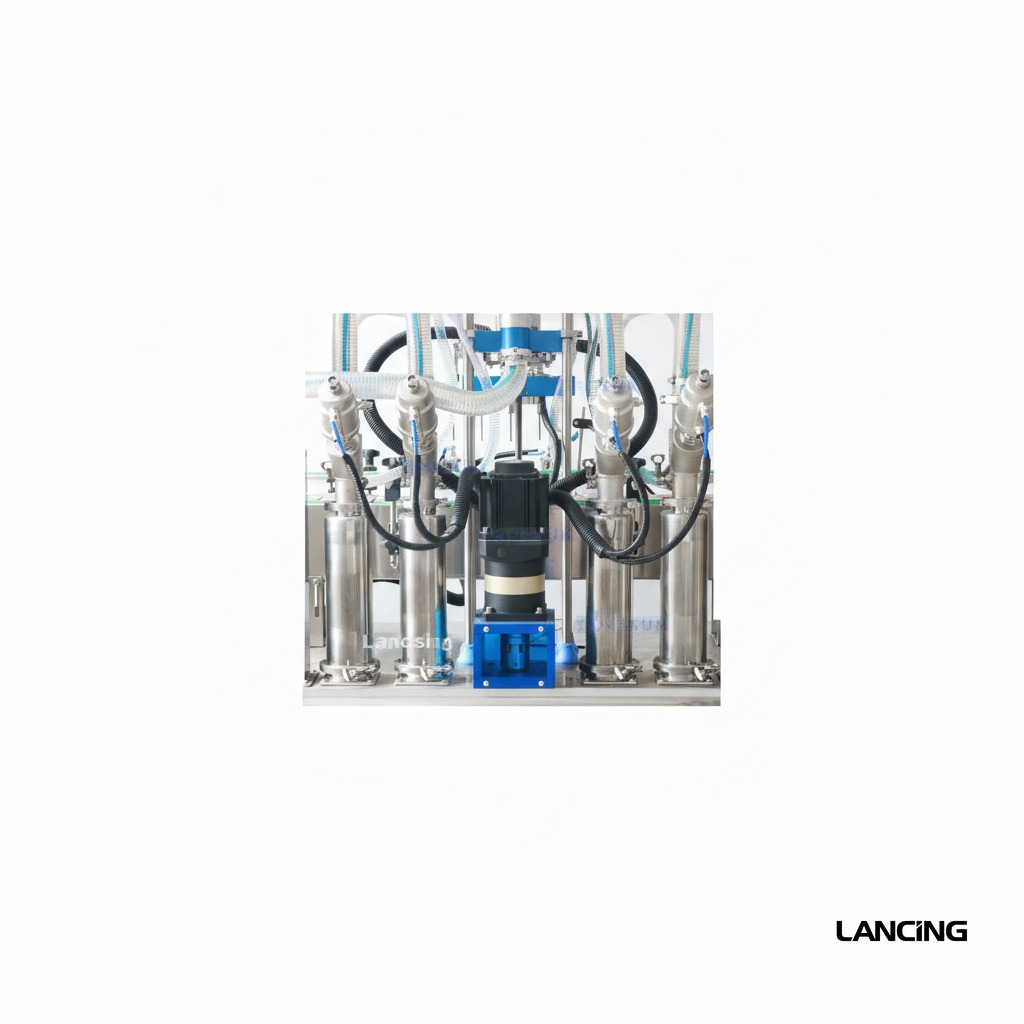

Machine gallery
Auto‑scrolling. Hover to pause.
Tip: Reorder images in the product manager — this carousel follows your order.
Specifications
Reference specification table. Final configuration may vary with options and scope.
| Parameter | Value |
|---|
| Model |
LU-YT4T-4PX |
| Voltage |
110/220V 50-60HZ 1KW |
| Filling Range |
10-180ml / 30-500ml / 100-1000ml |
| Working Speed |
About 30-50 bottles/min |
| Filling Pump |
Piston pump |
| Filling Accuracy |
≤ ±1% |
| Filling Head |
4 (Customizable) Inner dia.: 6mm 4 & 8mm 4 |
| Control |
7-inch touch screen |
| Storage Tank |
90L |
| Conveyor |
2000 × 114mm (Customizable) |
| Air Supply |
0.6-0.8MPa (Air compressor required, sold separately) |
| Size |
2000 × 800 × 1800mm |
| Weight |
200kg |
| Packaging Size |
2070 × 960 × 2010mm (100-1000ml) |
| Packaging Weight |
392kg (100-1000ml) |
CAD / dimensions
CAD/dimensions are provided in a pop‑out viewer.
No CAD/dimensions drawing uploaded yet.
Site requirements
- Voltage: 110/220V 50-60HZ 1KW
- Footprint / size: 2000 × 800 × 1800mm
For the most accurate proposal, include: product viscosity/foaming, container size, closure type, and required units per hour.
Quick answers
Clear answers for buyers, engineers and AI-driven search summaries.
What is LU-YT4T-4PX Automatic Paste Lotion Bottle Filling Machine used for?
This automatic piston pump filling machine is equipped with feeding pump,this is more convenient for feeding filling material.Filling work is controlled by servo motor, this is can simplify machine operation and improves working efficiency. Different filling range can be chosen and multiple filling nozzle can be customized according to operation need.This machine is suitable for filling hot sauce, cosmetic cream,lotion etc.
What output can LU-YT4T-4PX Automatic Paste Lotion Bottle Filling Machine achieve?
This page lists output at About 30-50 bottles/min. Actual throughput depends on the product, container, fill volume, changeover requirements and overall line setup.
What utilities or site requirements should I plan for?
Voltage: 110/220V 50-60HZ 1KW; Footprint / size: 2000 × 800 × 1800mm
Can Lancing UK help match this machine to my product and container?
Yes. Lancing UK can review your product characteristics, bottle or pack format, closure type, required output and site constraints to confirm the right configuration before supply.
