Pro Range

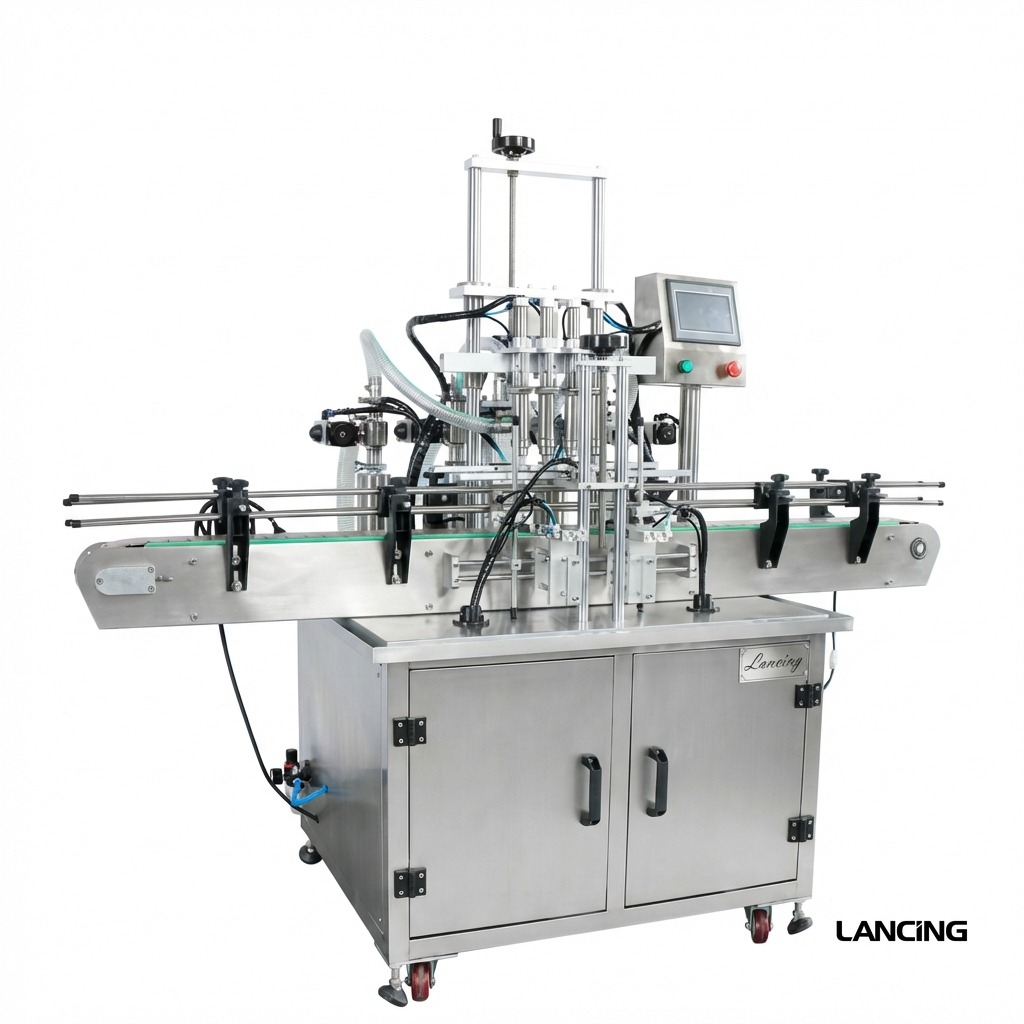

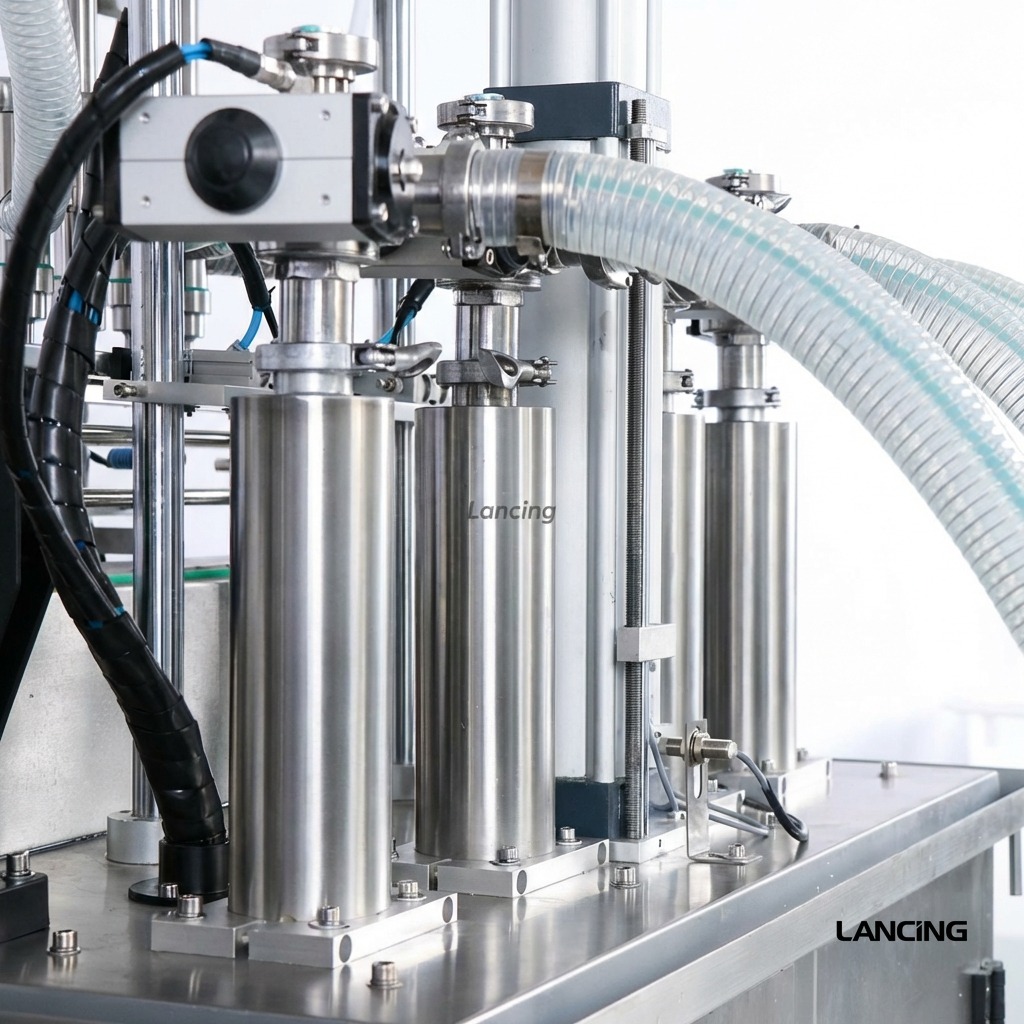

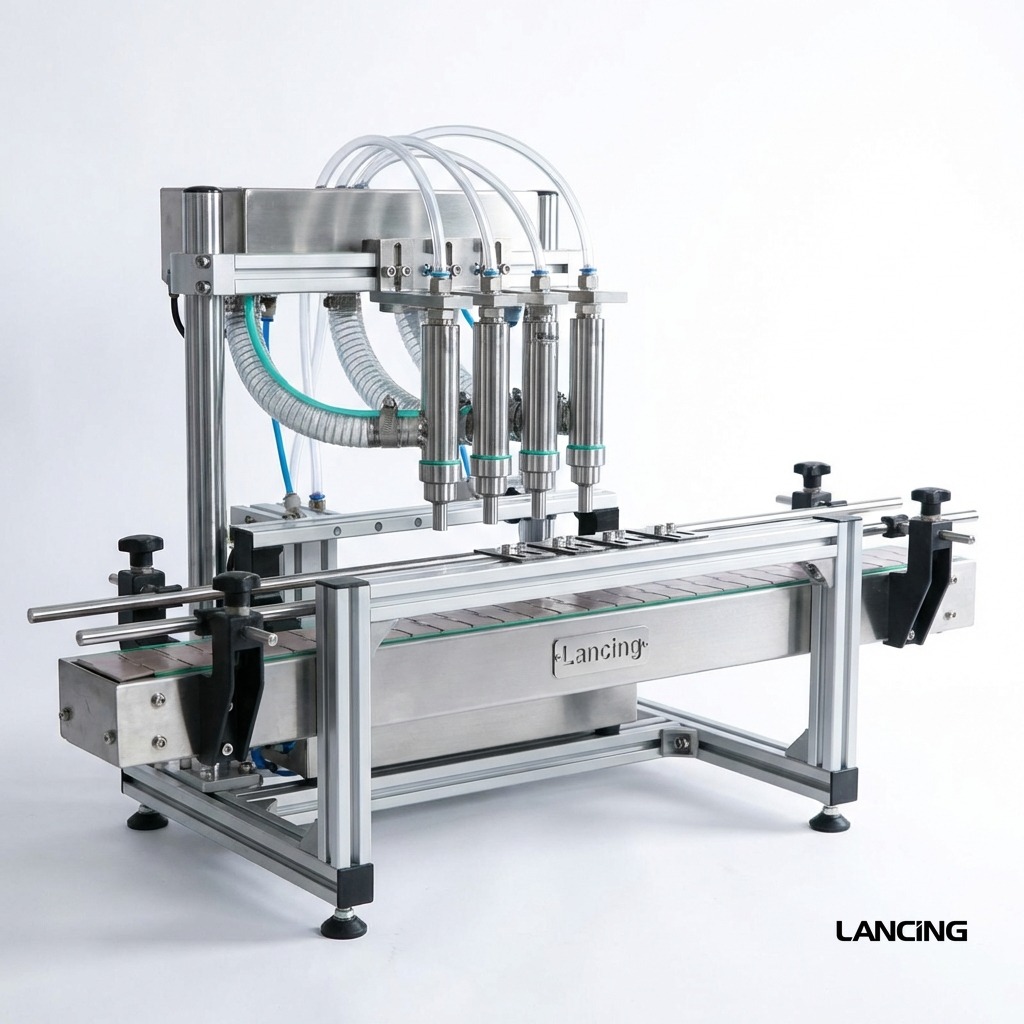

LU-YT4TZ Automatic 4 Nozzles Piston Liquid Filling Machine

Enquire now Arrange a Demonstration Call Now
Ready to discuss LU-YT4TZ Automatic 4 Nozzles Piston Liquid Filling Machine? Tell us your product, pack size and output target and we will help you shortlist the right configuration.
Call 01494 623015 Get a quote Browse categories

Machine overview

Key information to help you specify the right configuration.

LU-YT4TZ Automatic 4 Nozzles Piston Liquid Filling Machine preview
Application This machine is suitable for filling liquid, such as shampoo, laundry detergent, cooking oil, etc. It can work with automatic labeling machine and capping machine, realizing automated production.
Throughput
20–50 bottles/min
Throughput depends on product, format and operator workflow.
Format range
100–1000ml (5–100ml / 10–300ml / 50–500ml / 500–3000ml / 1000–5000ml can be chosen)
Configured to your bottle, closure and fill volume.
Utilities
110/220V, 800W
Voltage, air and installation requirements confirmed for your site.

Specifications

Reference specification table. Final configuration may vary with options and scope.

ParameterValue
Machine model LU-YT4TZ
Machine power 110/220V, 800W
Air pressure 0.5–0.8MPa
Filling range 100–1000ml (5–100ml / 10–300ml / 50–500ml / 500–3000ml / 1000–5000ml can be chosen)
Filling accuracy About ±3g
Filling speed 20–50 bottles/min
Conveyor belt size 1980×100mm
Machine size (L×W×H) About 1025×900×1700mm
Machine weight About 259kg
Package size (L×W×H) About 2060×960×1880mm
Package weight About 360kg

CAD / dimensions

CAD/dimensions are provided in a pop‑out viewer.

No CAD/dimensions drawing uploaded yet.

Site requirements

  • Power: 110/220V, 800W
  • Air pressure: 0.5–0.8MPa
  • Footprint / size: 1980×100mm
For the most accurate proposal, include: product viscosity/foaming, container size, closure type, and required units per hour.

Quick answers

Clear answers for buyers, engineers and AI-driven search summaries.

What is LU-YT4TZ Automatic 4 Nozzles Piston Liquid Filling Machine used for?

Application This machine is suitable for filling liquid, such as shampoo, laundry detergent, cooking oil, etc. It can work with automatic labeling machine and capping machine, realizing automated production.

What output can LU-YT4TZ Automatic 4 Nozzles Piston Liquid Filling Machine achieve?

This page lists output at 20–50 bottles/min. Actual throughput depends on the product, container, fill volume, changeover requirements and overall line setup.

What utilities or site requirements should I plan for?

Power: 110/220V, 800W; Air pressure: 0.5–0.8MPa; Footprint / size: 1980×100mm

Can Lancing UK help match this machine to my product and container?

Yes. Lancing UK can review your product characteristics, bottle or pack format, closure type, required output and site constraints to confirm the right configuration before supply.
